| Tube O.D. | A THREAD |
S1 Hex |
S2 Hex |
L | ØB | ØD DRILL |
ØP | L3 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 6 | M14X1.5-6g | 14.00 | 17.00 | 26.00 | 11.00 | 4.00 | 6.00 | 34.00 | XAS06S | AS06S | 14-16 | 630 |
| 8 | M16X1.5-6g | 17.00 | 19.00 | 28.00 | 13.00 | 5.00 | 8.00 | 36.00 | XAS08S | AS08S | 25-28 | 630 |
| 10 | M18X1.5-6g | 19.00 | 22.00 | 30.00 | 15.00 | 7.00 | 10.00 | 39.00 | XAS10S | AS10S | 27-30 | 630 |
| 12 | M20X1.5-6g | 22.00 | 24.00 | 32.00 | 17.00 | 8.00 | 12.00 | 41.00 | XAS12S | AS12S | 43-54 | 630 |
| 14 | M22X1.5-6g | 24.00 | 27.00 | 35.00 | 19.00 | 10.00 | 14.00 | 45.00 | XAS14S | AS14S | 50-62 | 630 |
| 16 | M24X1.5-6g | 27.00 | 30.00 | 35.00 | 21.00 | 12.00 | 16.00 | 45.00 | XAS16S | AS16S | 60-75 | 400 |
| 20 | M30X2.0-6g | 32.00 | 36.00 | 40.00 | 26.00 | 16.00 | 20.00 | 51.00 | XAS20S | AS20S | 90-110 | 400 |
| 25 | M36X2.0-6g | 41.00 | 46.00 | 44.00 | 31.00 | 20.00 | 25.00 | 56.00 | XAS25S | AS25S | 125-145 | 400 |
| 30 | M42X2.0-6g | 46.00 | 50.00 | 49.00 | 36.00 | 25.00 | 30.00 | 62.00 | XAS30S | AS30S | 170-190 | 250 |
| 38 | M52X2.0-6g | 55.00 | 60.00 | 54.00 | 44.00 | 32.00 | 38.00 | 69.00 | XAS38S | AS38S | 200-245 | 250 |

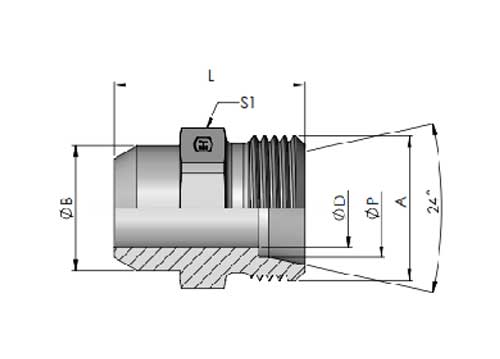

Body Part

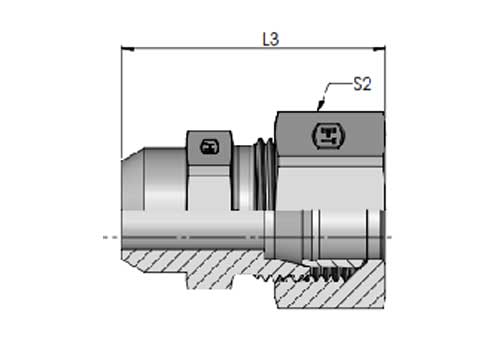

Assembly Part
AS-S Welding Connector
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XAS06L | |
| Steel ,Zinc nickel plated | ZiNi | XAS06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XAS06L-SST |
| Stainless Steel-SS316 | SS316 | XAS06L-SS |
| Stainless Steel-SS304 | SS304 | XAS06L-S |
