| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 8 | M16X1.5-6H | M14X1.5-6g | 19.00 | 19.00 | 40.20 | 4.00 | XEGE08SMED | EGE08SMED | 25-28 | 630 |
| 10 | M18X1.5-6H | M16X1.5-6g | 22.00 | 22.00 | 42.50 | 6.00 | XEGE10SMED | EGE10SMED | 27-30 | 630 |
| 12 | M20X1.5-6H | M18X1.5-6g | 24.00 | 24.00 | 44.70 | 8.00 | XEGE12SMED | EGE12SMED | 43-54 | 630 |
| 16 | M24X1.5-6H | M22X1.5-6g | 27.00 | 30.00 | 50.00 | 10.00 | XEGE16LMED | EGE16SMED | 60-75 | 400 |
| 20 | M30X2.0-6H | M27X2.0-6g | 32.00 | 36.00 | 58.00 | 14.00 | XEGE20SMED | EGE20SMED | 90-110 | 400 |
| 25 | M36X2.0-6H | M33X2.0-6g | 41.00 | 46.00 | 64.50 | 17.00 | XEGE25LMED | EGE25SMED | 125-145 | 400 |
| 30 | M42X2.0-6H | M42X2.0-6g | 50.00 | 50.00 | 69.50 | 22.00 | XEGE30SMED | EGE30SMED | 170-190 | 250 |
| 38 | M52X2.0-6H | M48X2.0-6g | 55.00 | 60.00 | 78.50 | 28.00 | XEGE38LMED | EGE38SMED | 200-245 | 250 |

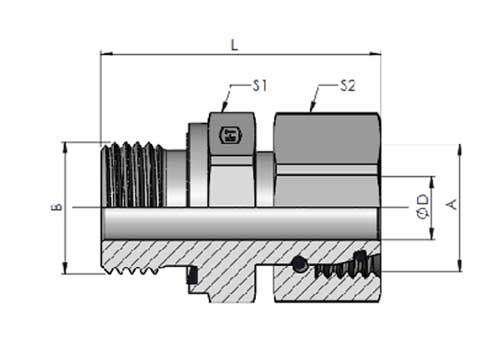

EGE-M-S Swivel Connector
- Category : S-series
- TUBE O.D : 08, 10, 12, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XEGE08LMED | |
| Steel ,Zinc nickel plated | ZiNi | XEGE08LMED-ZiNi |
| Stainless Steel-SS316 Ti | SST | XEGE08LMED-SST |
| Stainless Steel-SS316 | SS316 | XEGE08LMED-SS |
| Stainless Steel-SS304 | SS304 | XEGE08LMED-S |
