| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
ØP | L3 | L4 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 6 | M12X1.5-6g | G1/8"-28-BSPP-A | 14.00 | 14.00 | 23.50 | 4.00 | 6.00 | 12.00 | 28.00 | XGE06LR | GE06LR | 13-15 | 250 |
| 8 | M14X1.5-6g | G1/4"-19-BSPP-A | 19.00 | 17.00 | 29.00 | 6.00 | 8.00 | 12.00 | 30.00 | XGE08LR | GE08LR | 15-18 | 250 |
| 10 | M16X1.5-6g | G1/4"-19-BSPP-A | 19.00 | 19.00 | 30.00 | 6.00 | 10.00 | 12.00 | 31.00 | XGE10LR | GE10LR | 25-28 | 250 |
| 12 | M18X1.5-6g | G3/8"-19-BSPP-A | 22.00 | 22.00 | 31.50 | 9.00 | 12.00 | 12.00 | 33.00 | XGE12LR | GE12LR | 27-30 | 250 |
| 15 | M22X1.5-6g | G1/2"-14-BSPP-A | 27.00 | 27.00 | 32.50 | 11.00 | 15.00 | 14.00 | 37.00 | XGE15LR | GE15LR | 50-60 | 250 |
| 18 | M26X1.5-6g | G1/2"-14-BSPP-A | 27.00 | 32.00 | 36.00 | 14.00 | 18.00 | 14.00 | 37.00 | XGE18LR | GE18LR | 60-75 | 160 |
| 22 | M30X2.0-6g | G3/4"-14-BSPP-A | 32.00 | 36.00 | 40.00 | 18.00 | 22.00 | 16.00 | 42.00 | XGE22LR | GE22LR | 85-105 | 160 |
| 28 | M36X2.0-6g | G1"-11-BSPP-A | 41.00 | 41.00 | 43.00 | 23.00 | 26.00 | 18.00 | 47.00 | XGE28LR | GE28LR | 120-140 | 100 |
| 35 | M45X2.0-6g | G1-1/4"-11-BSPP-A | 50.00 | 50.00 | 48.00 | 30.00 | 35.00 | 20.00 | 50.00 | XGE35LR | GE35LR | 170-190 | 100 |
| 42 | M52X2.0-6g | G1-1/2"-11-BSPP-A | 55.00 | 60.00 | 52.00 | 36.00 | 42.00 | 22.00 | 57.00 | XGE42LR | GE42LR | 190-230 | 100 |
Body Part
Assembly Part

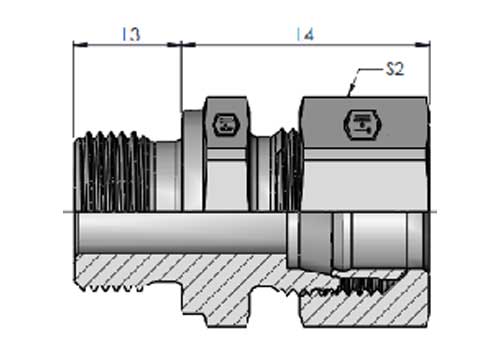

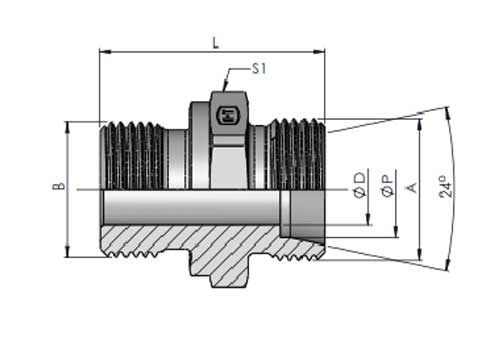

GE-R-L Parallel Male Studs
We provide GE-R-L Parallel Male Studs, Parallel Male Stud Couplings, Straight Series, DIN Metric Fittings. Our setup is situated in Thane, Pune, Nashik (Maharashtra), Pithampur (Madhya Pradesh), India and Virginia (USA - United States Of America); and we primarily serve customers from countries such as India, USA (United States of America), Germany, and Italy.
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XGE06LR | |
| Steel ,Zinc nickel plated | ZiNi | XGE06LR-ZiNi |
| Stainless Steel-SS316 Ti | SST | XGE06LR-SST |
| Stainless Steel-SS316 | SS316 | XGE06LR-SS |
| Stainless Steel-SS304 | SS304 | XGE06LR-S |
