| Tube O.D. | A THREAD |
H Hex |
L Length |
D DRILL |
L4 Length |
B BORE |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 12.70 | 14.00 | 4.40 | 5.60 | 6.50 | HT0403-04-04 | 15-16 | 345 |
| 5/16" | 7/16"-20UNF-2A | 12.70 | 14.00 | 4.40 | 5.60 | 8.10 | HT0403-05-04 | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 14.28 | 14.00 | 6.00 | 5.60 | 8.10 | HT0403-05-05 | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 15.88 | 14.10 | 7.50 | 6.40 | 9.68 | HT0403-06-06 | 24-28 | 345 |
| 3/8" | 3/4"-16UNF-2A | 20.62 | 16.70 | 9.90 | 6.40 | 9.68 | HT0403-06-08 | 49.53 | 310 |
| 1/2" | 9/16"-18UNF-2A | 20.62 | 14.10 | 7.50 | 6.40 | 12.85 | HT0403-08-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 20.62 | 16.70 | 9.90 | 6.40 | 12.85 | HT0403-08-08 | 49-53 | 310 |
| 1/2" | 7/8"-14UNF-2A | 23.80 | 19.30 | 12.30 | 7.90 | 12.85 | HT0403-08-10 | 77-85 | 240 |
| 5/8" | 3/4"-16UNF-2A | 23.80 | 16.70 | 9.90 | 6.40 | 16.03 | HT0403-10-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 23.80 | 19.30 | 12.30 | 7.90 | 16.03 | HT0403-10-10 | 77-85 | 240 |
| 5/8" | 1-1/16"-12UN-2A | 31.75 | 21.90 | 15.50 | 9.70 | 16.03 | HT0403-10-12 | 107-119 | 240 |
| 3/4" | 3/4"-16UNF-2A | 31.75 | 16.70 | 9.90 | 9.70 | 19.23 | HT0403-12-08 | 49-53 | 310 |
| 3/4" | 7/8"-14UNF-2A | 31.75 | 19.30 | 12.30 | 9.70 | 19.23 | HT0403-12-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 31.75 | 21.90 | 15.50 | 9.70 | 19.23 | HT0403-12-12 | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 34.92 | 22.60 | 18.30 | 9.70 | 22.40 | HT0403-14-14 | 127-140 | 210 |
| 1" | 1-1/16"-12UN-2A | 34.92 | 21.90 | 15.50 | 9.70 | 25.58 | HT0403-16-12 | 107-119 | 240 |
| 1" | 1-5/16"-12UN-2A | 34.92 | 23.10 | 21.50 | 9.70 | 25.58 | HT0403-16-16 | 147-154 | 210 |
| 1" | 1-5/8"-12UN-2A | 42.88 | 24.30 | 27.50 | 11.70 | 25.58 | HT0403-16-20 | 172-181 | 170 |
| 1-1/4" | 1-5/16"-12UN-2A | 42.88 | 23.10 | 21.50 | 11.70 | 31.95 | HT0403-20-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 42.88 | 24.30 | 27.50 | 11.70 | 31.95 | HT0403-20-20 | 172-181 | 170 |
| 1-1/4" | 1-7/8"-12UN-2A | 50.80 | 27.50 | 33.50 | 13.50 | 31.95 | HT0403-20-24 | 215-226 | 140 |
| 1-1/2" | 1-5/8"-12UN-2A | 50.80 | 24.30 | 27.50 | 13.50 | 38.30 | HT0403-24-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 50.80 | 27.50 | 33.50 | 13.50 | 38.30 | HT0403-24-24 | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 66.67 | 33.90 | 45.20 | 17.30 | 51.00 | HT0403-32-32 | 332-350 | 105 |
Product
Assembly

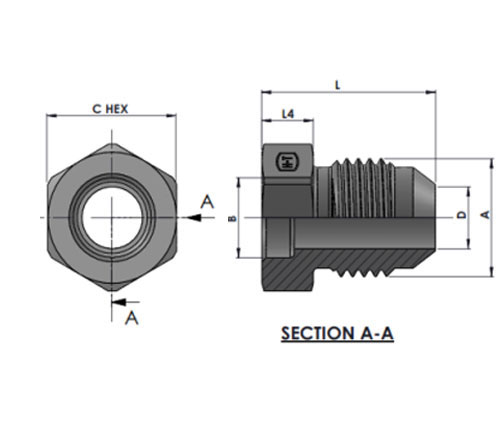

HT0403 Bore-MJ Straight
We provide HT0403 Bore-MJ Straight, Bore-MJ Straight Series, Bore-Mj Straight 0403 Series, Hydraulic Fitting Bore Mj Straight Series, JIC Fittings. Our setup is situated in Thane, Pune, Nashik (Maharashtra), Pithampur (Madhya Pradesh), India and Virginia (USA - United States Of America); and we primarily serve customers from countries such as India, USA (United States of America), Germany, and Italy.
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT0403-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HT0403-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT0403-04-04-SST |
| Stainless Steel-SS316 | SS316 | HT0403-04-04-SS |
| Stainless Steel-SS304 | SS304 | HT0403-04-04-S |
