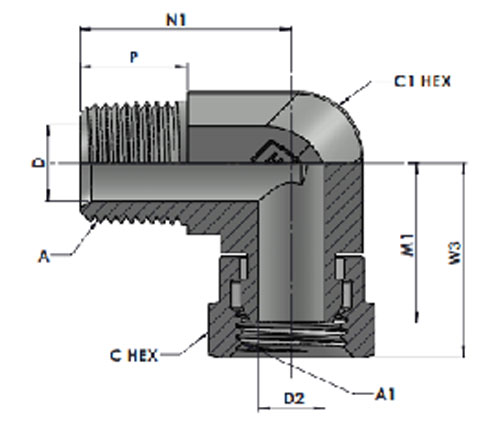

| A THREAD |
A1 THREAD |
C1 Hex |
N1 Length |
P Length |
D DRILL |
M1 Length |
W3 Length | D2 DRILL |
C Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/8"-27NPTF-2 | 1/8"-27NPSM | 11.11 | 18.30 | 9.70 | 4.80 | 17.80 | 21.30 | 4.80/2.80 | 14.28 | HT1501-02-02 | 12-13 | 345 |
| 1/4"-18NPTF-2 | 1/4"-18NPSM | 14.30 | 27.70 | 14.20 | 7.10 | 22.35 | 27.10 | 5.80/5.30 | 17.46 | HT1501-04-04 | 18-19 | 345 |
| 3/8"-18NPTF-2 | 3/8"-18NPSM | 19.00 | 31.00 | 14.20 | 10.30 | 25.15 | 30.50 | 9.10/8.10 | 22.23 | HT1501-06-06 | 22-24 | 275 |
| 1/2"-14NPTF-2 | 1/2"-14NPSM | 22.22 | 37.30 | 19.00 | 13.50 | 28.20 | 34.85 | 11.70 | 25.40 | HT1501-08-08 | 45-49 | 210 |
| 3/4"-14NPTF-2 | 3/4"-14NPSM | 27.00 | 40.40 | 19.00 | 18.30 | 33.00 | 41.90 | 16.80/15.20 | 31.75 | HT1501-12-12 | 65-72 | 170 |
| 1"-11-1/2NPTF-2 | 1"-11-1/2NPSM | 38.10 | 62.00 | 23.00 | 21.10 | 39.60 | 49.00 | 22.40 | 38.10 | HT1501-16-16 | 129-141 | 140 |
| 1-1/4"-11-1/2NPTF-2 | 1-1/4"-11-1/2NPSM | 47.63 | 68.10 | 24.60 | 28.40 | 47.00 | 57.20 | 29.50 | 47.63 | HT1501-20-20 | 160-176 | 80 |
| 1-1/2"-11-1/2NPTF-2 | 1-1/2"-11-1/2NPSM | 53.98 | 72.90 | 25.40 | 34.50 | 52.10 | 71.40 | 35.00 | 53.98 | HT1501-24-24 | 321-353 | 70 |
| 2"-11-1/2NPTF-2 | 2"-11-1/2NPSM | 66.68 | 85.60 | 26.20 | 45.50 | 61.00 | 72.90 | 47.70 | 66.68 | HT1501-32-32 | 420-462 | 70 |
Product
Assembly
HT1501 MP-FPS 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT1501-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT1501-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT1501-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT1501-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT1501-02-02-S |
