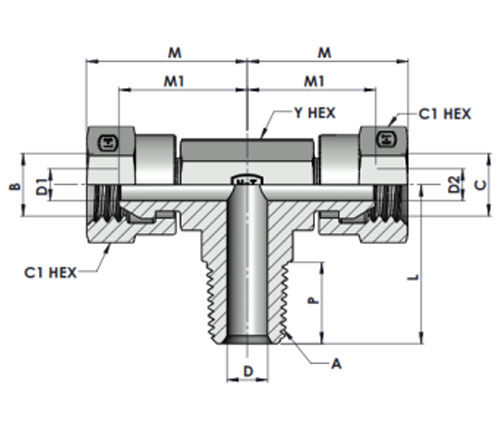

HT1601 MP-FPS-FPS Tee


  • Description
  • Additional Information
A
THREAD		 B
THREAD		 C THREAD Y Hex  C1 Hex  M Length  M1 Length  L
Length 		 P D
DRILL		 D1 DRILL D2
DRILL		 Part Number
Torque N-m		 Working pressure
in Bar
1/8"-27NPTF-2 1/8"-27NPSM 1/8"-27NPSM 11.11 14.27 21.30 17.80 18.30 9.70 4.70 3.80 3.80 HT1601-02-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPSM 1/4"-18NPSM 14.27 17.47 27.10 22.30 27.70 14.20 7.10 5.50 5.50 HT1601-04-04-04 18-19 345
3/8"-18NPTF-2 3/8"-18NPSM 3/8"-18NPSM 19.05 22.22 30.50 25.10 31.00 14.20 10.30 8.60 8.60 HT1601-06-06-06 22-24 275
1/2"-14NPTF-2 1/2"-14NPSM 1/2"-14NPSM 22.22 25.40 35.30 28.10 37.30 19.00 13.50 11.70 11.70 HT1601-08-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPSM 3/4"-14NPSM 26.97 31.75 41.90 33.00 40.40 19.00 18.26 16.10 16.10 HT1601-12-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPSM 1"-11-1/2NPSM 33.32 38.10 48.00 39.10 50.00 23.90 23.80 21.10 21.10 HT1601-16-16-16 129-141 140
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPSM 1-1/2"-11-1/2NPSM 41.27 47.62 54.60 43.90 60.45 24.60 31.75 27.60 27.60 HT1601-20-20-20 160-176 80
2"-11-1/2NPTF-2 2"-11-1/2NPSM 2"-11-1/2NPSM 47.62 53.97 58.60 48.00 67.00 26.20 38.10 33.40 33.40 HT1601-24-24-24 321-353 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT1601-02-02-02
Steel ,Zinc nickel plated  ZiNi HT1601-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT1601-02-02-02-SST
Stainless Steel-SS316  SS316 HT1601-02-02-02SS
Stainless Steel-SS304 SS304 HT1601-02-02-02-S
