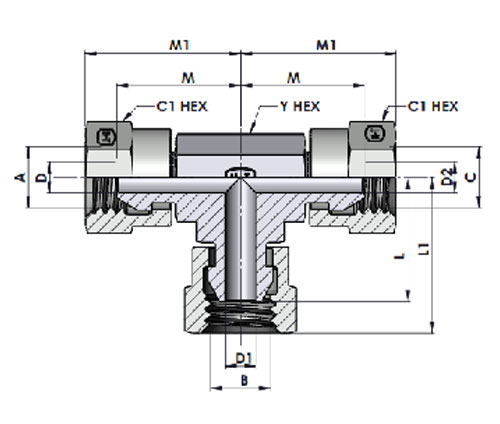

HT1603 FPS-FPS-FPS Tee


  • Description
  • Additional Information
A
THREAD		 B
THREAD		 C THREAD Y Hex  C1 Hex  M Length  M1 Length  L
Length 		 L1
Length 		 D
DRILL		 D1 DRILL D2
DRILL		 Part Number Torque
N-m		 Working pressure
in Bar
1/8"-27NPSM 1/8"-27NPSM 1/8"-27NPSM 11.11 14.27 17.80 21.30 21.30 17.80 3.80 3.80 3.80 HT1603-02-02-02 12-13 345
1/4"-18NPSM 1/4"-18NPSM 1/4"-18NPSM 14.27 17.47 22.30 27.10 27.10 22.30 5.50 5.50 5.50 HT1603-04-04-04 18-19 345
3/8"-18NPSM 3/8"-18NPSM 3/8"-18NPSM 19.05 22.22 25.10 30.50 30.50 25.10 8.60 8.60 8.60 HT1603-06-06-06 22-24 275
1/2"-14NPSM 1/2"-14NPSM 1/2"-14NPSM 19.05 25.40 28.10 35.30 35.30 28.10 11.70 11.70 11.70 HT1603-08-08-08 45-49 210
3/4"-14NPSM 3/4"-14NPSM 3/4"-14NPSM 26.97 31.75 33.00 41.90 41.90 33.00 16.10 16.10 16.10 HT1603-12-12-12 65-72 170
1"-11-1/2NPSM 1"-11-1/2NPSM 1"-11-1/2NPSM 33.32 38.10 39.10 48.00 48.00 39.10 21.10 21.10 21.10 HT1603-16-16-16 129-141 140
1-1/2"-11-1/2NPSM 1-1/2"-11-1/2NPSM 1-1/2"-11-1/2NPSM 41.27 47.62 43.90 54.60 54.60 43.90 27.60 27.60 27.60 HT1603-20-20-20 160-176 80
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT1603-02-02-02
Steel ,Zinc nickel plated  ZiNi HT1603-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT1603-02-02-02-SST
Stainless Steel-SS316  SS316 HT1603-02-02-02SS
Stainless Steel-SS304 SS304 HT1603-02-02-02-S
