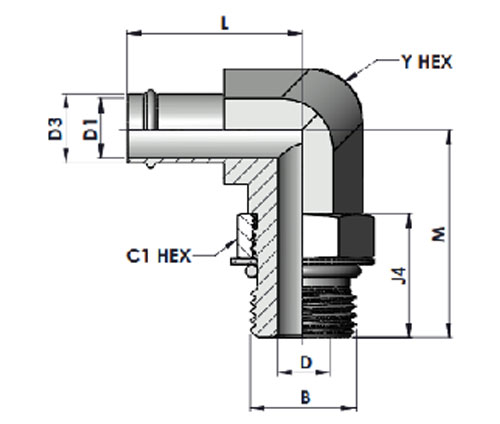

HT4601-NWO HB-MAORB 90°


  • Description
  • Additional Information
Tube O.D. B
THREAD		 Y
Hex 		 C1 Hex  L M J4  D
DRILL		 D1
DRILL		 D3 TUBE OD Part Number Torque N-m Working pressure
in Bar
1/4" 7/16"-20UNF-2A 12.70 12.30 44.50 26.20 18.20 4.40 4.80 6.35 HT4601-04-04-NWO 15-16 345
3/8" 9/16"-18UNF-2A 15.88 17.48 46.00 31.80 19.10 7.50 7.50 9.52 HT4601-06-06-NWO 24-28 345
1/2" 3/4"-16UNF-2A 20.62 22.23 48.40 36.90 21.90 9.90 10.30 12.70 HT4601-08-08-NWO 49-53 310
3/4" 1-1/16"-12UN-2A 28.58 31.75 52.40 49.20 21.90 12.30 15.90 19.05 HT4601-12-12-NWO 107-119 240
1" 1-5/16"-12UN-2A 34.93 38.10 55.50 52.00 23.10 21.40 21.40 25.40 HT4601-16-16-NWO 147-154 210
1-1/4" 1-5/8"-12UN-2A 44.45 47.63 60.30 57.20 29.00 27.40 27.80 31.75 HT4601-20-20-NWO 172-181 170
1-1/2" 1-7/8"-12UN-2A 50.80 53.98 63.50 60.70 29.00 33.30 34.10 38.10 HT4601-24-24-NWO 215-226 140
2" 2-1/2"-12UN-2A 66.68 69.85 71.40 73.40 29.00 45.20 46.80 50.8 HT4601-32-32-NWO 332-350 105
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT4601-04-04-NOW
Steel ,Zinc nickel plated  ZiNi HT4601-04-04-NWO-ZiNi
Stainless Steel-SS316 Ti SST HT4601-04-04-NWO-SST
Stainless Steel-SS316  SS316 HT4601-04-04-NWO-SS
Stainless Steel-SS304 SS304 HT4601-04-04-NWO-S
