HT5404 MP-MP STRAIGHT


  • Description
  • Additional Information

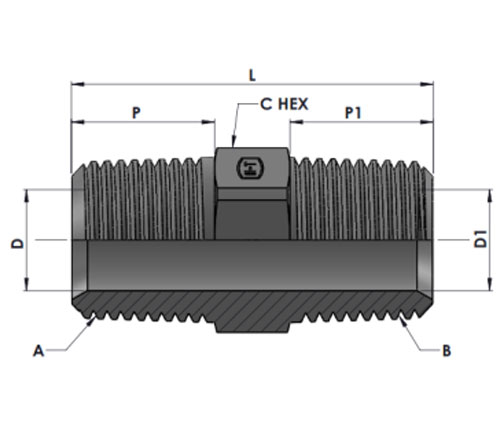

A
THREAD		 B
THREAD		 C
Hex 		 L P P1 D  D1 Part Number Working pressure in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 11.11 26.90 9.70 9.70 4.80 4.80 HT5404-02-02 345
1/4"-18NPTF-2 1/8"-27NPTF-2 15.87 32.00 14.20 9.70 7.00 4.80 HT5404-04-02 345
1/4"-18NPTF-2 1/4"-18NPTF-2 15.87 36.80 14.20 14.20 7.10 7.10 HT5404-04-04 345
3/8"-18NPTF-2 1/8"-27NPTF-2 19.05 32.00 14.20 9.70 10.30 4.80 HT5404-06-02 275
3/8"-18NPTF-2 1/4"-18NPTF-2 19.05 36.85 14.20 14.20 10.30 7.10 HT5404-06-04 275
3/8"-18NPTF-2 3/8"-18NPTF-2 19.05 36.80 14.20 14.20 10.30 10.30 HT5404-06-06 275
1/2"-14NPTF-2 1/4"-18NPTF-2 22.22 43.20 19.00 14.20 13.50 7.10 HT5404-08-04 210
1/2"-14NPTF-2 3/8"-18NPTF-2 22.22 43.20 19.00 14.20 13.50 10.30 HT5404-08-06 210
1/2"-14NPTF-2 1/2"-14NPTF-2 22.22 48.00 19.00 19.00 13.50 13.50 HT5404-08-08 210
3/4"-14NPTF-2 1/2"-14NPTF-2 28.58 49.80 19.00 19.00 18.00 13.50 HT5404-12-08 170
3/4"-14NPTF-2 3/4"-14NPTF-2 28.58 49.80 19.00 19.00 18.26 18.26 HT5404-12-12 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 34.90 49.40 23.90 23.90 23.80 23.80 HT5404-16-16 140
1-1/4"-11-1/2NPTF-2 1"-11-1/2NPTF-2 44.45 62.20 24.60 23.90 31.75 23.80 HT5404-20-16 80
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 44.45 63.00 24.60 24.60 31.75 31.75 HT5404-20-20 80
1-1/2"-11-1/2NPTF-2 1"-11-1/2NPTF-2 50.80 66.50 24.40 23.90 38.00 23.80 HT5404-24-16 70
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 50.80 66.30 25.40 25.40 38.00 38.00 HT5404-24-24 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5404-02-02
Steel ,Zinc nickel plated  ZiNi HT5404-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5404-02-02-SST
Stainless Steel-SS316  SS316 HT5404-02-02-SS
Stainless Steel-SS304 SS304 HT5404-02-02-S
