HT5406 MP-FP REDUCER BUSHING


  • Description
  • Additional Information

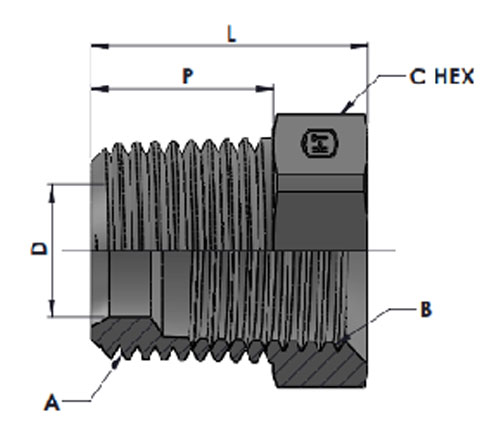

A
THREAD		 B
THREAD		 C
Hex 		 L P D  Part Number Working pressure in Bar
1/4"-18NPTF-2 1/8"-27NPTF-2 15.88 21.60 14.20 8.45 HT5406-04-02 275
3/8"-18NPTF-2 1/8"-27NPTF-2 19.05 21.60 14.20 8.45 HT5406-06-02 210
3/8"-18NPTF-2 1/4"-18NPTF-2 19.05 21.60 14.20 10.30 HT5406-06-04 210
1/2"-14NPTF-2 1/4"-18NPTF-2 22.22 27.90 19.00 10.90 HT5406-08-04 210
1/2"-14NPTF-2 3/8"-18NPTF-2 22.22 27.90 19.00 13.50 HT5406-08-06 210
3/4"-14NPTF-2 1/4"-18NPTF-2 28.58 29.72 19.00 11.11 HT5406-12-04 170
3/4"-14NPTF-2 3/8"-18NPTF-2 28.58 29.72 19.00 14.50 HT5406-12-06 170
3/4"-14NPTF-2 1/2"-14NPTF-2 28.58 29.70 19.00 18.00 HT5406-12-08 170
1"-11-1/2NPTF-2 3/8"-18NPTF-2 34.92 34.54 23.90 14.30 HT5406-16-06 140
1"-11-1/2NPTF-2 1/2"-14NPTF-2 34.92 34.54 23.90 18.00 HT5406-16-08 140
1"-11-1/2NPTF-2 3/4"-14NPTF-2 34.92 34.57 23.90 22.87 HT5406-16-12 140
1-1/4"-11-1/2NPTF-2 1"-11-1/2NPTF-2 44.45 37.30 24.60 29.00 HT5406-20-16 80
1-1/2"-11-1/2NPTF-2 1"-11-1/2NPTF-2 50.80 39.90 25.40 29.00 HT5406-24-16 70
1-1/2"-11-1/2NPTF-2 3/4"-14NPTF-2 50.80 39.90 25.40 23.00 HT5406-24-12 70
1-1/2"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 50.80 39.90 25.40 37.45 HT5406-24-20 70
2"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 63.50 44.50 26.20 37.40 HT5406-32-20 70
2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 63.50 44.50 26.20 43.55 HT5406-32-24 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5406-04-02
Steel ,Zinc nickel plated  ZiNi HT5406-04-02-ZiNi
Stainless Steel-SS316 Ti SST HT5406-04-02-SST
Stainless Steel-SS316  SS316 HT5406-04-02-SS
Stainless Steel-SS304 SS304 HT5406-04-02-S
