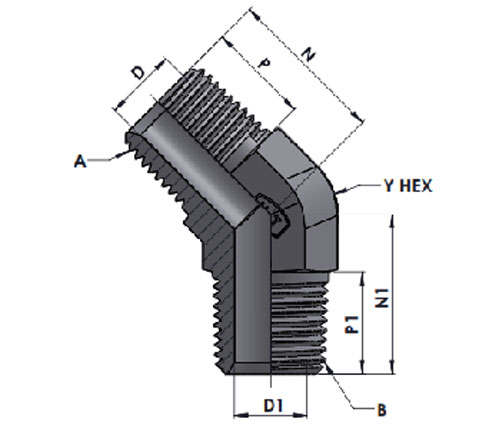

HT5501 MP-MP 45°


  • Description
  • Additional Information
A1
THREAD		 A2
THREAD		 Y
Hex 		 N P N1 P1 D  D1 Part Number Torque N-m Working pressure
in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 11.11 16.30 9.70 16.30 9.70 4.80 4.80 HT5501-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPTF-2 14.28 21.80 14.20 21.80 14.20 7.10 7.10 HT5501-04-04 18-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 19.05 24.10 14.20 24.10 14.20 10.30 10.30 HT5501-06-06 22-24 275
1/2"-14NPTF-2 1/2"-14NPTF-2 22.22 29.70 19.00 29.70 19.00 13.50 13.50 HT5501-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 27.00 30.50 19.00 30.50 19.00 18.30 18.30 HT5501-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 33.32 37.60 23.90 37.60 23.90 23.80 23.80 HT5501-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 41.27 42.40 24.60 42.40 24.60 31.75 31.75 HT5501-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 47.62 45.00 24.40 45.00 24.40 38.00 38.00 HT5501-24-24 321-353 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5501-02-02
Steel ,Zinc nickel plated  ZiNi HT5501-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5501-02-02-SST
Stainless Steel-SS316  SS316 HT5501-02-02-SS
Stainless Steel-SS304 SS304 HT5501-02-02-S
