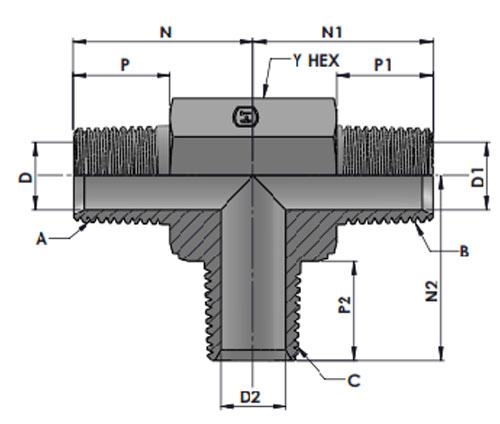

HT5600 MP-MP-MP TEE


  • Description
  • Additional Information
A
THREAD		 B
THREAD		 C
THREAD		 Y
Hex 		 N N1 N2 P P1 P2 D D1 D2 Part
Number		 Torque
N-m		 Working pressure
in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 1/8"-27NPTF-2 11.13 19.80 19.80 19.80 9.70 9.70 9.70 4.5 4.5 4.5 HT5600-02-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPTF-2 1/4"-18NPTF-2 14.27 27.70 27.70 27.70 14.20 14.20 14.20 7.1 7.1 7.1 HT5600-04-04-04 14-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 3/8"-18NPTF-2 19.05 31.00 31.00 31.00 14.20 14.20 14.20 10.3 10.3 10.3 HT5600-06-06-06 22-24 245
1/2"-14NPTF-2 1/2"-14NPTF-2 1/2"-14NPTF-2 22.23 37.30 37.30 37.30 19.00 19.00 19.00 13.5 13.5 13.5 HT5600-08-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 3/4"-14NPTF-2 26.97 40.40 40.40 40.40 19.00 19.00 19.00 18.3 18.3 18.3 HT5600-12-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 33.32 50.00 50.00 50.00 23.90 23.90 23.90 23.8 23.8 23.8 HT5600-16-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 41.25 60.50 60.50 60.50 24.60 24.60 24.60 31.8 31.8 31.8 HT5600-20-20-20 160-176 80
2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 63.5 76.20 76.20 76.20 24.40 24.40 24.40 49.23 49.23 49.23 HT5600-32-32-32 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5600-02-02-02
Steel ,Zinc nickel plated  ZiNi HT5600-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5600-02-02-02-SST
Stainless Steel-SS316  SS316 HT5600-02-02-02-SS
Stainless Steel-SS304 SS304 HT5600-02-02-02-S
