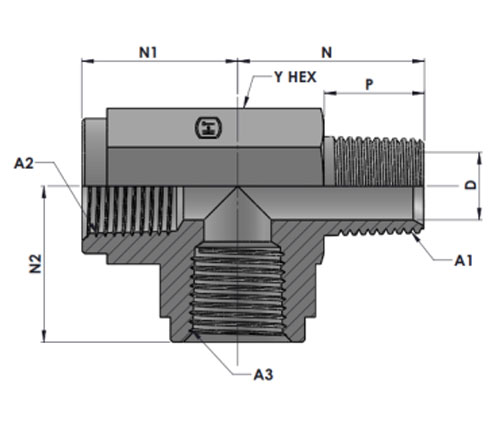

HT5602 MP-FP-FP Street Tee


  • Description
  • Additional Information
A1
THREAD		 A2
THREAD		 A3
THREAD		 Y
Hex 		 N N1 N2 P D Part
Number		 Torque N-m Working pressure
in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 1/8"-27NPTF-2 14.30 19.80 16.80 16.80 9.70 4.80 HT5602-02-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPTF-2 1/4"-18NPTF-2 19.00 27.70 22.40 22.40 14.20 7.00 HT5602-04-04-04 14-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 3/8"-18NPTF-2 22.23 31.00 25.90 25.90 14.20 10.30 HT5602-06-06-06 22-24 245
1/2"-14NPTF-2 1/2"-14NPTF-2 1/2"-14NPTF-2 27.00 37.30 31.20 31.20 19.00 13.50 HT5602-08-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 3/4"-14NPTF-2 33.34 40.40 34.50 34.50 19.00 18.00 HT5602-12-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 41.27 43.10 41.10 41.10 23.90 23.80 HT5602-16-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 47.62 60.45 43.10 43.10 24.60 31.75 HT5602-20-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 65.07 67.00 52.80 52.80 24.40 38.00 HT5602-24-24-24 321-353 70
2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 71.42 76.20 60.70 60.70 26.20 49.00 HT5602-32-32-32 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5602-02-02-02
Steel ,Zinc nickel plated  ZiNi HT5602-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5602-02-02-02-SST
Stainless Steel-SS316  SS316 HT5602-02-02-02-SS
Stainless Steel-SS304 SS304 HT5602-02-02-02-S
