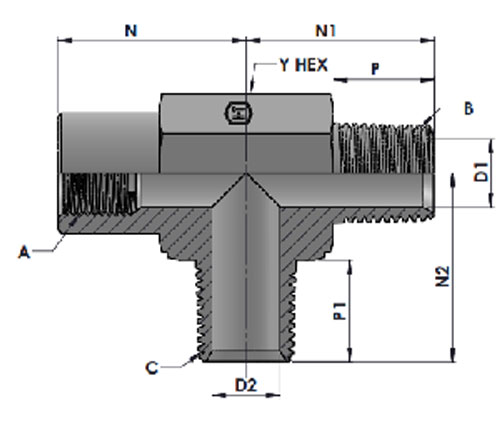

HT5603 MP-FP-MP TEE


  • Description
  • Additional Information
A
THREAD		 B
THREAD		 C
THREAD		 Y
Hex 		 N N1 N2 P D1 DRILL D2 DRILL Part
Number		 Torque
N-m		 Working pressure
in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 1/8"-27NPTF-2 14.27 16.80 19.80 19.80 9.70 4.80 4.80 HT5603-02-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPTF-2 1/4"-18NPTF-2 19.05 22.40 27.70 27.70 14.20 7.00 7.00 HT5603-04-04-04 14-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 3/8"-18NPTF-2 22.23 25.90 31.00 31.00 14.20 10.30 10.30 HT5603-06-06-06 22-24 245
1/2"-14NPTF-2 1/2"-14NPTF-2 1/2"-14NPTF-2 26.97 31.20 37.30 37.30 19.00 13.50 13.50 HT5603-08-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 3/4"-14NPTF-2 33.32 34.50 40.40 40.40 19.00 18.00 18.00 HT5603-12-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 41.28 41.10 43.20 43.20 23.90 23.80 23.80 HT5603-16-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 47.63 43.20 60.50 60.50 24.60 31.75 31.75 HT5603-20-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 65.07 52.80 67.10 67.10 24.40 38.00 38.00 HT5603-24-24-24 321-353 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5603-02-02-02
Steel ,Zinc nickel plated  ZiNi HT5603-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5603-02-02-02-SST
Stainless Steel-SS316  SS316 HT5603-02-02-02-SS
Stainless Steel-SS304 SS304 HT5603-02-02-02-S
