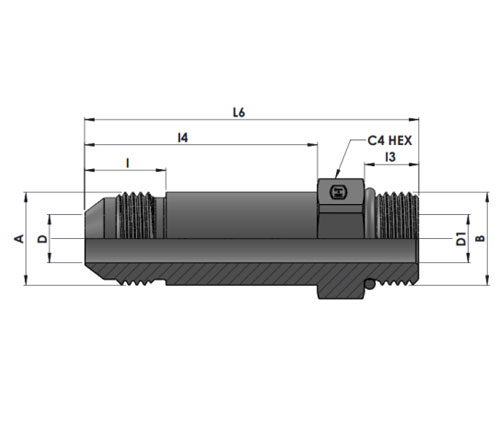

HT6400-L-O MJ-MORB STRAIGHT LONG


  • Description
  • Additional Information
Tube O.D A
THREAD		 B
THREAD		 C4
Hex 		 L6
Length		 I4 I I3 D DRILL D1 DRILL Part Number Working pressure in Bar
1/8" 5/16"-24UNF-2A 5/16"-24UNF-2A 11.11 45.50 29.70 11.40 7.54 1.60 1.60 HT6400-L-02-02 345
3/16" 3/8"-24UNF-2A 3/8"-24UNF-2A 12.70 47.50 31.80 12.20 7.54 3.20 3.20 HT6400-L-03-03 345
1/4" 7/16"-20UNF-2A 7/16"-20UNF-2A 14.28 52.80 35.30 14.00 9.14 4.40 4.40 HT6400-L-04-04 345
5/16" 1/2"-20UNF-2A 1/2"-20UNF-2A 15.88 54.40 36.80 14.00 9.14 6.00 6.00 HT6400-L-05-05 345
3/8" 9/16"-18UNF-2A 9/16"-18UNF-2A 17.46 58.70 39.60 14.10 9.93 7.50 7.50 HT6400-L-06-06 345
3/8" 9/16"-18UNF-2A 3/4"-16UNF-2A 22.22 66.00 39.60 14.10 11.13 7.50 9.90 HT6400-L-06-08 310
1/2" 3/4"-16UNF-2A 3/4"-16UNF-2A 22.23 68.60 47.80 16.70 11.13 9.90 9.90 HT6400-L-08-08 310
1/2" 3/4"-16UNF-2A 7/8"-14UNF-2A 25.40 74.67 50.00 16.70 12.70 9.90 12.30 HT6400-L-08-10 240
5/8" 7/8"-14UNF-2A 7/8"-14UNF-2A 25.40 77.20 53.10 19.30 12.70 12.30 12.30 HT6400-L-10-10 240
3/4" 1-1/16"-12UN-2A 1-1/16"-12UN-2A 31.75 91.70 63.50 21.90 15.09 15.50 15.50 HT6400-L-12-12 240
7/8" 1-3/16"-12UN-2A 1-3/16"-12UN-2A 34.93 96.50 68.30 22.60 15.09 18.30 18.30 HT6400-L-14-14 210
1" 1-5/16"-12UN-2A 1-5/16"-12UN-2A 38.10 101.10 72.10 23.10 15.09 21.50 21.50 HT6400-L-16-16 210
1-1/4" 1-5/8"-12UN-2A 1-5/8"-12UN-2A 47.63 119.10 88.10 24.30 15.09 27.50 27.50 HT6400-L-20-20 170
1-1/2" 1-7/8"-12UN-2A 1-7/8"-12UN-2A 53.98 131.30 98.60 27.50 15.09 33.50 33.50 HT6400-L-24-24 140
2" 2-1/2"-12UN-2A 2-1/2"-12UN-2A 60.33 159.80 122.90 33.90 15.09 45.20 45.20 HT6400-L-32-32 105
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT6400-L-02-02
Steel ,Zinc nickel plated  ZiNi HT6400-L-02-02-O-ZiNi
Stainless Steel-SS316 Ti SST HT6400-L-02-02-SST
Stainless Steel-SS316  SS316 HT6400-L-02-02-SS
Stainless Steel-SS304 SS304 HT6400-L-02-02-S
