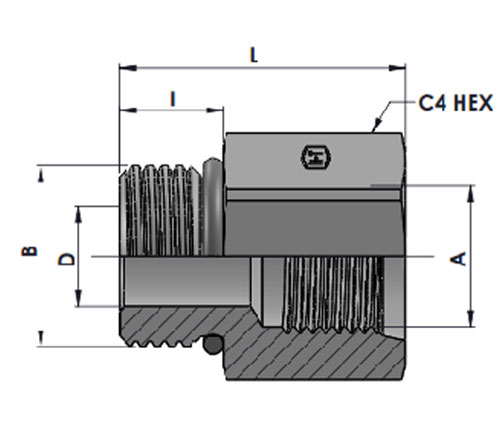

HT6410 MORB-FORB STR.REDUCER


  • Description
  • Additional Information
A
THREAD		 B
THREAD		 C4
Hex 		 L
Length		 I D DRILL Part Number Torque
N-m		 Working pressure in Bar
9/16"-18UNF-2B 3/4"-16UNF-2A 22.23 30.75 11.13 9.90 HT6410-08-06-O 49-53 210
3/4"-16UNF-2B 3/4"-16UNF-2A 27.00 37.50 11.13 9.90 HT6410-08-08-O 49-53 210
3/4"-16UNF-2B 7/8"-14UNF-2A 27.00 35.10 12.70 12.30 HT6410-10-08-O 59-64 210
3/4"-16UNF-2B 1-1/16"-12UN-2A 31.75 37.60 15.09 15.50 HT6410-12-08-O 93-102 170
7/8"-14UNF-2B 1-1/16"-12UN-2A 31.75 40.00 15.09 15.50 HT6410-12-10-O 93-102 170
3/4"-16UNF-2B 1-5/16"-12UN-2A 38.10 25.40 15.09 17.30 HT6410-16-08-O 151-166 140
1-1/16"-12UN-2B 1-5/16"-12UN-2A 38.10 43.94 15.09 21.30 HT6410-16-12-O 151-166 140
1-5/16"-12UN-2B 1-5/16"-12UN-2A 41.27 43.94 15.09 21.30 HT6410-16-16-O 151-166 140
1-7/8"-12UN-2B 1-7/8"-12UN-2A 63.50 50.20 15.09 34.10 HT6410-24-24-O 209-231 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT6410-08-06-O
Steel ,Zinc nickel plated  ZiNi HT6410-08-06-O-ZiNi
Stainless Steel-SS316 Ti SST HT6410-08-06-O-SST
Stainless Steel-SS316  SS316 HT6410-08-06-O-SS
Stainless Steel-SS304 SS304 HT6410-08-06-O-S
