| Tube O.D. | A THREAD |
B THREAD |
Y Hex |
C2 Hex |
M | N | N1 | I | D DRILL |
D1 DRILL |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 5/16"-24UNF-2B | 11.10 | 11.11 | 19.60 | 16.00 | 23.90 | 11.40 | 1.60 | 1.60 | HT6500-02-02 | 8-9 | 345 |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2B | 11.11 | 14.28 | 22.60 | 16.70 | 25.40 | 14.00 | 4.40 | 4.40 | HT6500-04-04 | 15-16 | 345 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2B | 14.30 | 17.46 | 26.90 | 22.30 | 31.80 | 14.10 | 7.50 | 7.50 | HT6500-06-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2B | 19.00 | 22.22 | 31.80 | 24.40 | 35.10 | 16.70 | 9.90 | 9.90 | HT6500-08-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 22.22 | 25.40 | 36.80 | 34.30 | 41.10 | 19.30 | 12.30 | 12.30 | HT6500-10-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2B | 27.00 | 31.75 | 42.20 | 30.10 | 44.40 | 21.90 | 15.50 | 15.50 | HT6500-12-12 | 107-119 | 240 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2B | 33.30 | 41.28 | 46.00 | 35.70 | 50.80 | 23.10 | 21.50 | 21.50 | HT6500-16-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 41.30 | 47.63 | 52.30 | 42.80 | 58.70 | 24.30 | 27.50 | 27.50 | HT6500-20-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 1-7/8"-12UN-2A | 47.60 | 53.98 | 59.20 | 47.20 | 65.80 | 27.50 | 33.50 | 33.50 | HT6500-24-24 | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 2-1/2"-12UN-2A | 63.50 | 69.85 | 77.70 | 62.10 | 85.90 | 33.90 | 45.00 | 45.00 | HT6500-32-32 | 332-350 | 105 |
Product
Assembly

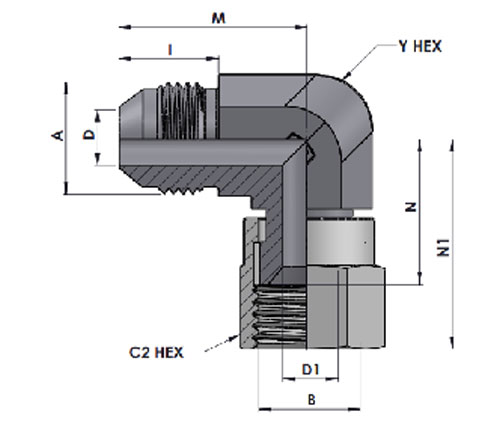

HT6500 MJ-FJS 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6500-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT6500-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6500-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT6500-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT6500-02-02-S |
