| Tube O.D. | A THREAD |
B THREAD |
C1 Hex |
C2 Hex |
L | L1 | D DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2B | 7/16"-20UNF-2B | 14.30 | 14.30 | 15.20 | 35.30 | 4.40 | HT6565-04-04 | 15-16 | 345 |
| 3/8" | 9/16"-18UNF-2B | 9/16"-18UNF-2B | 17.47 | 17.47 | 21.30 | 40.60 | 7.50 | HT6565-06-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2B | 3/4"-16UNF-2B | 22.22 | 22.22 | 23.87 | 45.70 | 9.90 | HT6565-08-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 25.40 | 25.40 | 25.40 | 50.80 | 12.30 | HT6565-10-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2B | 1-1/16"-12UN-2B | 31.75 | 31.75 | 27.10 | 56.10 | 15.50 | HT6565-12-12 | 107-119 | 240 |
| 1" | 1-5/16"-12UN-2B | 1-5/16"-12UN-2B | 38.10 | 38.10 | 30.20 | 60.70 | 21.50 | HT6565-16-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2B | 1-5/8"-12UN-2B | 50.80 | 50.80 | 32.50 | 65.00 | 27.40 | HT6565-20-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2B | 1-7/8"-12UN-2B | 57.15 | 57.15 | 36.00 | 72.60 | 33.30 | HT6565-24-24 | 215-226 | 140 |
Product
Assembly

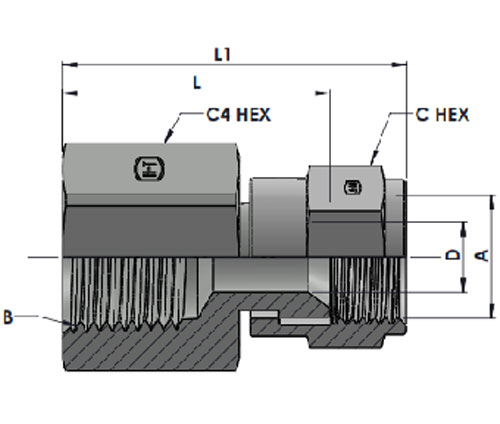

HT6565 FJS-FJS STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6565-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HT6565-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6565-04-04-SST |
| Stainless Steel-SS316 | SS316 | HT6565-04-04-SS |
| Stainless Steel-SS304 | SS304 | HT6565-04-04-S |
