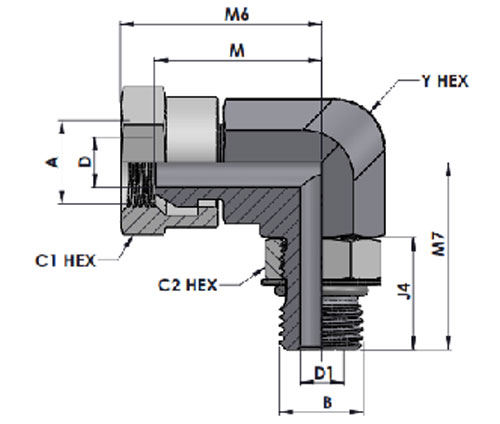

| Tube O.D. | A THREAD |
B THREAD |
Y Hex |
C1 Hex |
C2 Hex |
M | M6 | M7 | J4 | D DRILL |
D1 DRILL |
Part Number | Working pressure in Bar |
| 3/8" | 1/4"-18NPSM | 7/16"-20UNF-2A | 14.30 | 17.46 | 17.46 | 23.90 | 28.70 | 31.80 | 19.10 | 5.80/5.30 | 7.50 | HT6901-06-04-NWO | 275 |
| 3/8" | 3/8"-18NPSM | 9/16"-18UNF-2A | 19.00 | 22.22 | 17.46 | 28.40 | 33.20 | 31.80 | 19.10 | 9.10/8.10 | 7.50 | HT6901-06-06-NWO | 210 |
| 1/2" | 3/8"-18NPSM | 3/4"-16UNF-2A | 19.00 | 22.22 | 122.22 | 28.40 | 33.20 | 36.80 | 21.90 | 9.10/8.10 | 9.90 | HT6901-08-06-NWO | 210 |
| 1/2" | 1/2"-14NPSM | 3/4"-16UNF-2A | 19.00 | 25.40 | 22.22 | 28.20 | 35.50 | 36.80 | 21.90 | 12.20/11.20 | 9.90 | HT6901-08-08-NWO | 210 |
| 3/4" | 3/4"-14NPSM | 1-1/16"-12UN-2A | 27.00 | 31.75 | 31.75 | 35.30 | 43.70 | 50.80 | 29.00 | 16.80/15.20 | 15.50 | HT6901-12-12-NWO | 170 |
Product
Assembly
HT6901 MORB-FPS 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6815-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HT6815-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6815-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HT6815-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HT6815-04-04-NWO-S |
