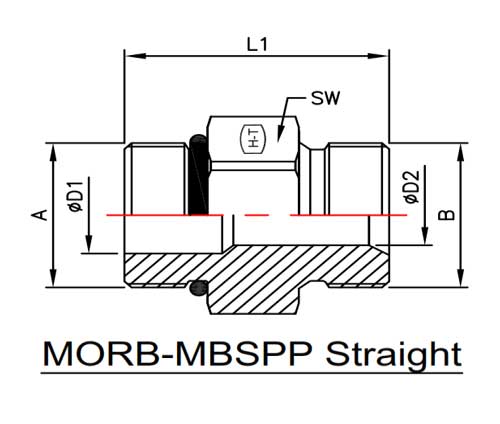

| SR. NO. |
PART NO. | SW | L | A UNF THREAD |
ǾD1 | B BSPP THREAD |
ǾD2 |
| 01 | HT7062-04-04 | 18.0 | 27.10 | 7/16"-20UNF | 4.40 | 1/4"-19BSPP | 4.70 |
| 02 | HT7062-04-06 | 22.0 | 29.10 | 7/16"-20UNF | 4.40 | 3/8"-19BSPP | 7.90 |
| 03 | HT7062-04-08 | 27.0 | 35.00 | 7/16"-20UNF | 4.40 | 1/2"-14BSPP | 11.10 |
| 04 | HT7062-06-04 | 19.0 | 29.00 | 9/16"-18UNF | 7.50 | 1/4"-19BSPP | 4.70 |
| 05 | HT7062-06-06 | 22.0 | 30.00 | 9/16"-18UNF | 7.50 | 3/8"-19BSPP | 7.90 |
| 06 | HT7062-06-08 | 27.0 | 34.00 | 9/16"-18UNF | 7.50 | 1/2"-14BSPP | 11.10 |
| 07 | HT7062-08-04 | 22.0 | 31.00 | 3/4"-16UNF | 9.90 | 1/4"-19BSPP | 4.70 |
| 08 | HT7062-08-06 | 22.0 | 33.80 | 3/4"-16UNF | 9.53 | 3/8"-19BSPP | 9.53 |
| 09 | HT7062-08-08 | 27.0 | 37.00 | 3/4"-16UNF | 9.90 | 1/2"-14BSPP | 11.10 |
| 10 | HT7062-08-10 | 30.0 | 39.10 | 3/4"-16UNF | 9.90 | 5/8"-14BSPP | 14.30 |
| 11 | HT7062-08-12 | 32.0 | 39.10 | 3/4"-16UNF | 9.90 | 3/4"-14BSPP | 16.70 |
| 12 | HT7062-10-06 | 27.0 | 35.70 | 7/8"-14UNF | 12.30 | 3/8"-19BSPP | 7.90 |
| 13 | HT7062-10-08 | 27.0 | 37.70 | 7/8"-14UNF | 12.30 | 1/2"-14BSPP | 11.10 |
| 14 | HT7062-10-10 | 30.0 | 40.00 | 7/8"-14UNF | 12.30 | 5/8"-14BSPP | 14.30 |
| 15 | HT7062-10-12 | 32.0 | 40.70 | 7/8"-14UNF | 12.30 | 3/4"-14BSPP | 16.70 |
| 16 | HT7062-10-16 | 41.0 | 46.70 | 7/8"-14UNF | 12.30 | 1"-11BSPP | 22.20 |
| 17 | HT7062-12-06 | 32.0 | 40.10 | 1-1/16"-12UN | 15.50 | 3/8"-19BSPP | 7.90 |
| 18 | HT7062-12-08 | 32.0 | 42.10 | 1-1/16"-12UN | 15.50 | 1/2"-14BSPP | 11.10 |
| 19 | HT7062-12-12 | 32.0 | 44.10 | 1-1/16"-12UN | 15.50 | 3/4"-14BSPP | 16.70 |
| 20 | HT7062-12-16 | 41.0 | 49.10 | 1-1/16"-12UN | 15.50 | 1"-11BSPP | 22.20 |
| 21 | HT7062-16-06 | 41.0 | 39.80 | 1-5/16"-12UN | 21.40 | 3/8"-19BSPP | 7.90 |
| 22 | HT7062-16-12 | 41.0 | 44.90 | 1-5/16"-12UN | 21.40 | 3/4"-14BSPP | 16.70 |
| 23 | HT7062-16-16 | 41.0 | 46.50 | 1-5/16"-12UN | 21.40 | 1"-11BSPP | 21.40 |
ALL REQUIREMENT AS PER SAE J514/ BS:5200
ALL DIMENSIONS ARE IN MM
