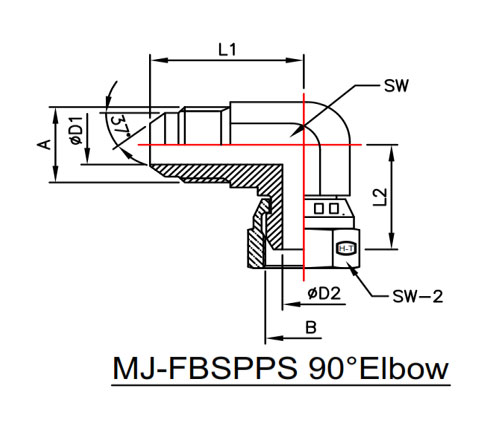

| SR. NO. |
PART NO. | SW | L1 | A JIC THREAD |
ǾD1 | L2 | B BSPP THREAD (INT) |
ǾD2 | SW-2 |
| 01 | HT7204-04-04 | 14.00 | 22.60 | 7/16"-20UNF | 4.40 | 26.1 | 1/4"-19BSPP | 4.50 | 19.00 |
| 02 | HT7204-06-06 | 19.00 | 26.90 | 9/16"-18UNF | 7.50 | 27.0 | 3/8"-19BSPP | 7.10 | 22.00 |
| 03 | HT7204-08-06 | 19.00 | 31.80 | 3/4"-16UNF | 9.90 | 27.0 | 3/8"-19BSPP | 7.10 | 22.00 |
| 04 | HT7204-08-08 | 22.00 | 31.80 | 3/4"-16UNF | 9.90 | 32.3 | 1/2"-14BSPP | 9.70 | 27.00 |
| 05 | HT7204-12-12 | 27.00 | 42.20 | 1-1/16"-12UN | 15.5 | 33.6 | 3/4"-14BSPP | 15.5 | 32.00 |
ALL REQUIREMENT AS PER SAE J514 ,ISO8434 & BS:5200
ALL DIMENSIONS ARE IN MM
