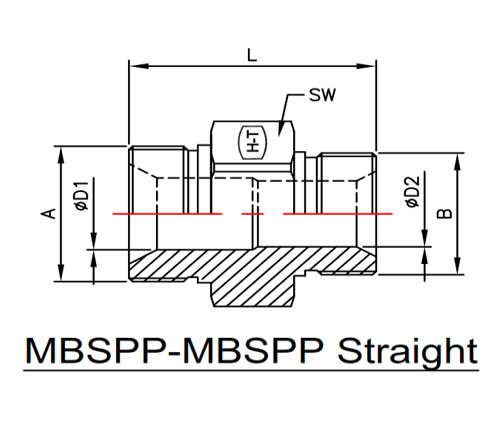

| SR. NO. |
PART NO. | SW | L | A BSPP THREAD |
ǾD1 | B BSPT THREAD |
ǾD2 |
| 01 | HT9022-04-02 | 19.0 | 29.50 | 1/4"-19BSPP | 4.70 | 1/8"19BSPP | 3.50 |
| 02 | HT9022-04-04 | 19.0 | 33.00 | 1/4"-19BSPP | 4.70 | 1/4"-19BSPP | 4.70 |
| 03 | HT9022-06-04 | 22.0 | 35.50 | 3/8"-19BSPP | 7.90 | 1/4"-19BSPP | 4.70 |
| 04 | HT9022-06-06 | 22.0 | 37.00 | 3/8"-19BSPP | 7.90 | 3/8"-19BSPP | 7.90 |
| 05 | HT9022-08-04 | 27.0 | 40.00 | 1/2"-14BSPP | 11.10 | 1/4"-19BSPP | 4.70 |
| 06 | HT9022-08-06 | 27.0 | 41.50 | 1/2"-14BSPP | 11.10 | 3/8"-19BSPP | 7.90 |
| 07 | HT9022-08-08 | 27.0 | 44.00 | 1/2"-14BSPP | 11.10 | 1/2"-14BSPP | 11.10 |
| 08 | HT9022-10-04 | 30.0 | 44.00 | 5/8"-14BSPP | 14.30 | 1/4"-19BSPP | 4.70 |
| 09 | HT9022-10-06 | 30.0 | 45.50 | 5/8"-14BSPP | 14.30 | 3/8"-19BSPP | 7.90 |
| 10 | HT9022-10-08 | 30.0 | 48.00 | 5/8"-14BSPP | 14.30 | 1/2"-14BSPP | 11.10 |
| 11 | HT9022-10-10 | 30.0 | 50.00 | 5/8"-14BSPP | 14.30 | 5/8"-14BSPP | 14.30 |
| 12 | HT9022-12-04 | 32.0 | 44.00 | 3/4"-14BSPP | 16.70 | 1/4"-19BSPP | 4.70 |
| 13 | HT9022-12-06 | 32.0 | 45.50 | 3/4"-14BSPP | 16.70 | 3/8"-19BSPP | 7.90 |
| 14 | HT9022-12-08 | 32.0 | 48.00 | 3/4"-14BSPP | 16.70 | 1/2"-14BSPP | 11.10 |
| 15 | HT9022-12-10 | 32.0 | 50.00 | 3/4"-14BSPP | 16.70 | 5/8"-14BSPP | 14.30 |
| 16 | HT9022-12-12 | 32.0 | 51.20 | 3/4"-14BSPP | 16.70 | 3/4"-14BSPP | 16.70 |
| 17 | HT9022-16-04 | 41.0 | 50.00 | 1"-11BSPP | 22.20 | 1/4"-19BSPP | 4.70 |
| 18 | HT9022-16-06 | 41.0 | 51.50 | 1"-11BSPP | 22.20 | 3/8"-19BSPP | 7.90 |
| 19 | HT9022-16-08 | 41.0 | 54.00 | 1"-11BSPP | 22.20 | 1/2"-14BSPP | 11.10 |
| 20 | HT9022-16-10 | 41.0 | 56.00 | 1"-11BSPP | 22.20 | 5/8"-14BSPP | 14.30 |
| 21 | HT9022-16-12 | 41.0 | 56.00 | 1"-11BSPP | 22.20 | 3/4"-14BSPP | 16.70 |
| 22 | HT9022-16-16 | 41.0 | 59.00 | 1"-11BSPP | 22.20 | 1"-11BSPP | 22.20 |
| 23 | HT9022-20-12 | 50.0 | 55.00 | 1-1/4"11BSPP | 28.60 | 3/4"-14BSPP | 16.70 |
| 24 | HT9022-24-16 | 55.0 | 64.00 | 1-1/2"11BSPP | 33.30 | 1"-11BSPP | 22.20 |
ALL REQUIREMENT AS PER BS:5200 / ISO:8434-6
ALL DIMENSIONS ARE IN MM
