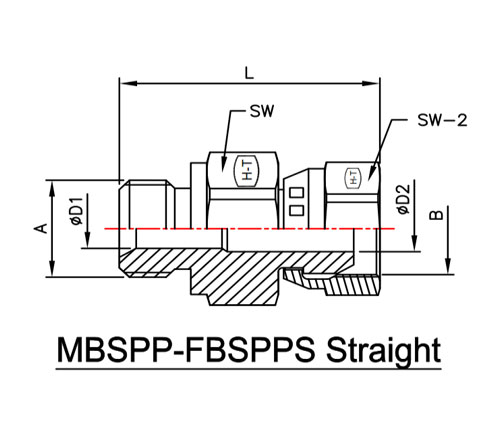

| SR. NO. |
PART NO. | SW | L | L1 | A UNF THREAD (INT) |
ǿD1 | B BSPP THREAD(INT) |
ǾD2 | SW-2 |
| 01 | HT9024-04-04 | 19.00 | 34.50 | 31.80 | 1/4"-19BSPP | 4.70 | 1/4"-19BSPP | 4.50 | 19.00 |
| 02 | HT9024-04-06 | 19.00 | 37.00 | 33.00 | 1/4"-19BSPP | 4.70 | 3/8"-19BSPP | 7.10 | 22.00 |
| 03 | HT9024-04-08 | 22.00 | 42.50 | 38.00 | 1/4"-19BSPP | 4.70 | 1/2"-14BSPP | 9.70 | 27.00 |
| 04 | HT9024-06-04 | 22.00 | 37.00 | 34.30 | 3/8"-19BSPP | 7.90 | 1/4"-19BSPP | 4.50 | 19.00 |
| 05 | HT9024-06-06 | 22.00 | 39.60 | 35.50 | 3/8"-19BSPP | 7.90 | 3/8"-19BSPP | 7.10 | 22.00 |
| 06 | HT9024-06-08 | 22.00 | 43.50 | 39.50 | 3/8"-19BSPP | 7.90 | 1/2"-14BSPP | 9.70 | 27.00 |
| 07 | HT9024-06-12 | 27.00 | 48.70 | 42.50 | 3/8"-19BSPP | 7.90 | 3/4"-14BSPP | 15.50 | 32.00 |
| 08 | HT9024-08-04 | 27.00 | 40.70 | 38.50 | 1/2"-14BSPP | 11.10 | 1/4"-19BSPP | 4.50 | 19.00 |
| 09 | HT9024-08-06 | 27.00 | 43.00 | 40.00 | 1/2"-14BSPP | 11.10 | 3/8"-19BSPP | 7.10 | 22.00 |
| 10 | HT9024-08-08 | 27.00 | 46.00 | 42.50 | 1/2"-14BSPP | 11.10 | 1/2"-14BSPP | 9.70 | 27.00 |
| 11 | HT9024-08-10 | 27.00 | 50.20 | 43.50 | 1/2"-14BSPP | 11.10 | 5/8"-14BSPP | 12.00 | 30.00 |
| 12 | HT9024-08-12 | 27.00 | 51.20 | 45.50 | 1/2"-14BSPP | 11.10 | 3/4"-14BSPP | 15.50 | 32.00 |
| 13 | HT9024-08-16 | 32.00 | 58.70 | 53.00 | 1/2"-14BSPP | 11.10 | 1"-11BSPP | 20.40 | 41.00 |
| 14 | HT9024-10-08 | 30.00 | 49.50 | 46.00 | 5/8"-14BSPP | 14.30 | 1/2"-14BSPP | 9.70 | 27.00 |
| 15 | HT9024-10-10 | 30.00 | 53.00 | 46.30 | 5/8"-14BSPP | 14.30 | 5/8"-14BSPP | 12.00 | 30.00 |
| 16 | HT9024-10-12 | 30.00 | 52.70 | 47.00 | 5/8"-14BSPP | 14.30 | 3/4"-14BSPP | 15.50 | 32.00 |
| 17 | HT9024-12-06 | 32.00 | 46.50 | 43.50 | 3/4"-14BSPP | 16.70 | 3/8"-19BSPP | 7.10 | 22.00 |
| 18 | HT9024-12-08 | 32.00 | 50.00 | 46.50 | 3/4"-14BSPP | 16.70 | 1/2"-14BSPP | 9.70 | 27.00 |
| 19 | HT9024-12-10 | 32.00 | 52.20 | 45.50 | 3/4"-14BSPP | 16.70 | 5/8"-14BSPP | 12.00 | 30.00 |
| 20 | HT9024-12-12 | 32.00 | 53.50 | 47.30 | 3/4"-14BSPP | 16.70 | 3/4"-14BSPP | 15.50 | 32.00 |
| 21 | HT9024-12-16 | 33.00 | 63.00 | 55.50 | 3/4"-14BSPP | 16.70 | 1"-11BSPP | 20.40 | 41.00 |
| 22 | HT9024-16-08 | 41.00 | 54.50 | 51.00 | 1"-11BSPP | 22.20 | 1/2"-14BSPP | 9.70 | 27.00 |
| 23 | HT9024-16-10 | 41.00 | 57.20 | 50.50 | 1"-11BSPP | 22.20 | 5/8"-14BSPP | 12.00 | 30.00 |
| 24 | HT9024-16-12 | 41.00 | 57.70 | 52.00 | 1"-11BSPP | 22.20 | 3/4"-14BSPP | 15.50 | 32.00 |
| 25 | HT9024-16-16 | 41.00 | 66.00 | 58.50 | 1"-11BSPP | 22.20 | 1"-11BSPP | 20.40 | 41.00 |
ALL REQUIREMENT AS PER BS:5200 & ISO:8434
ALL DIMENSIONS ARE IN MM
