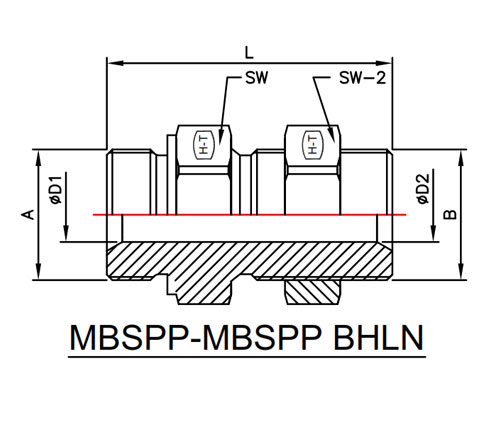

| SR. NO. |
PART NO. | SW | L | A BSPP THREAD |
ǾD1 | B BSPT THREAD |
ǾD2 | SW-2 |
| 01 | HT9722-04-04-LN | 19.0 | 46.00 | 1/4"-19BSPP | 4.70 | 1/4"-19BSPP | 4.70 | 19.0 |
| 02 | HT9722-04-06-LN | 22.0 | 51.00 | 1/4"-19BSPP | 4.70 | 3/8"-19BSPP | 7.90 | 22.0 |
| 03 | HT9722-06-04-LN | 22.0 | 48.00 | 3/8"-19BSPP | 7.90 | 3/8"-19BSPP | 7.90 | 22.0 |
| 04 | HT9722-06-06-LN | 22.0 | 52.00 | 3/8"-19BSPP | 7.90 | 3/8"-19BSPP | 7.90 | 22.0 |
| 05 | HT9722-06-08-LN | 27.0 | 57.00 | 3/8"-19BSPP | 7.90 | 1/2"-14BSPP | 11.10 | 27.0 |
| 06 | HT9722-08-08-LN | 27.0 | 59.00 | 1/2"-14BSPP | 11.10 | 1/2"-14BSPP | 11.10 | 27.0 |
| 07 | HT9722-08-06-LN | 27.0 | 56.00 | 1/2"-14BSPP | 11.10 | 1/4"-19BSPP | 4.70 | 27.0 |
| 08 | HT9722-08-12-LN | 32.0 | 64.00 | 1/2"-14BSPP | 11.10 | 3/4"-14BSPP | 16.70 | 32.0 |
| 09 | HT9722-10-10-LN | 30.0 | 63.00 | 5/8"-14BSPP | 14.30 | 5/8"-14BSPP | 14.30 | 30.0 |
| 10 | HT9722-12-08-LN | 32.0 | 63.00 | 3/4"-14BSPP | 16.70 | 1/2"-14BSPP | 11.10 | 32.0 |
| 11 | HT9722-12-12-LN | 32.0 | 66.00 | 3/4"-14BSPP | 16.70 | 3/4"-14BSPP | 16.70 | 32.0 |
| 12 | HT9722-12-16-LN | 41.0 | 72.00 | 3/4"-14BSPP | 16.70 | 1"-11BSPP | 22.20 | 41.0 |
| 13 | HT9722-16-16-LN | 41.0 | 75.00 | 1"-11BSPP | 22.20 | 1"-11BSPP | 22.20 | 41.0 |
ALL REQUIREMENT AS PER BS:5200 / ISO:8434
ALL DIMENSIONS ARE IN MM
