HTC0319 FERRULE


  • Description
  • Additional Information

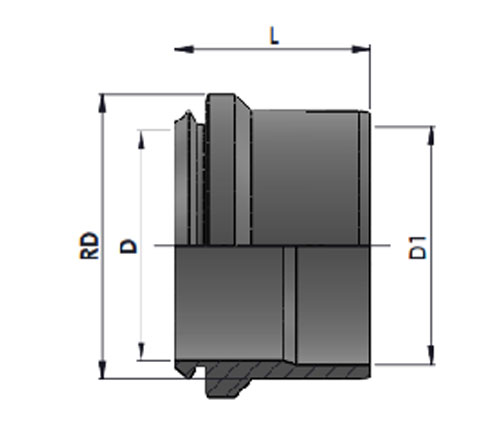

RD L D D1 Part
Number		 Weight Torque N-m Working pressure
in Bar
6.02 7.32 3.30 3.56 HTC0319-02 0.002 345 8-9
7.80 8.36 4.90 5.21 HTC0319-03 0.003 345 11-12
9.32 9.22 6.48 8.61 HTC0319-04 0.005 310 15-16
10.92 9.32 8.08 8.38 HTC0319-05 0.008 275 19-21
12.50 9.98 9.65 9.98 HTC0319-06 0.011 275 24-28
16.84 10.90 12.83 13.23 HTC0319-08 0.021 275 49-53
19.81 11.23 16.03 16.43 HTC0319-10 0.030 210 77-85
23.50 12.06 19.20 19.61 HTC0319-12 0.045 210 107-119
27.00 12.06 22.38 22.78 HTC0319-14 0.060 170 127-140
30.15 12.06 25.55 25.96 HTC0319-16 0.074 170 147-154
36.73 12.06 32.00 32.38 HTC0319-20 0.110 140 172-181
43.03 12.06 38.35 38.71 HTC0319-24 0.152 105 215-226
56.13 12.93 51.16 51.46 HTC0319-32 0.276 80 332-350
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HTC0319-02
Steel ,Zinc nickel plated  ZiNi HTC0319-02-ZiNi
Stainless Steel-SS316 Ti SST HTC0319-02-SST
Stainless Steel-SS316  SS316 HTC0319-02-SS
Stainless Steel-SS304 SS304 HTC0319-02-S
