| Tube O.D. | H O.D. |
K Length |
A THREAD |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 12.75 | 8.50 | 9/16"-18 | HTFS0304-C-04 | 14-16 | 413 |
| 3/8" | 15.75 | 9.50 | 11/16"-18 | HTFS0304-C-06 | 24-27 | 413 |
| 1/2" | 18.92 | 12.00 | 13/16"-16 | HTFS0304-C-08 | 43-47 | 413 |
| 5/8" | 23.44 | 12.00 | 1"-14 | HTFS0304-C-10 | 60-68 | 413 |
| 3/4" | 27.86 | 13.50 | 1-3/16"-12 | HTFS0304-C-12 | 90-95 | 413 |
| 1" | 34.21 | 15.00 | 1-7/16"-12 | HTFS0304-C-16 | 125-135 | 413 |
| 1-1/4" | 40.56 | 15.00 | 1-11/16"-12 | HTFS0304-C-20 | 170-190 | 275 |
| 1-1/2" | 48.51 | 15.00 | 2"-12 | HTFS0304-C-24 | 200-225 | 275 |
Body
Assembly

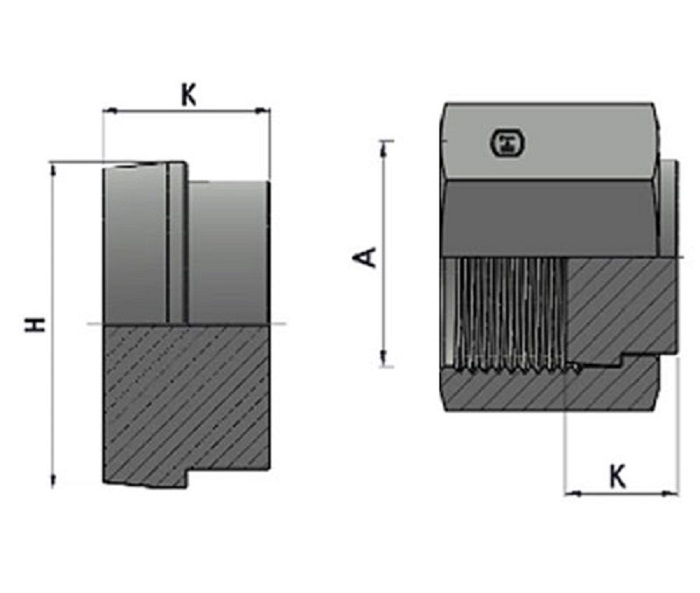

HTFS0304-C Cap Assembly Insert
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS0304-C-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS0304-C-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS0304-C-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS0304-C-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS0304-C-04-S |
