| Tube O.D. | A THREAD |
B THREAD |
L LENGTH |
CC LENGTH |
HH LENGTH |
D DRILL |
D1 LENGTH |
H Hex |
C3 Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 28.60 | 9.80 | 17.80 | 4.40 | 4.40 | 15.88 | 14.29 | HTFS6402-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 9/16"-18 | 32.40 | 11.20 | 19.90 | 6.70 | 7.50 | 19.05 | 17.46 | HTFS6402-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 35.30 | 12.80 | 22.60 | 9.60 | 9.90 | 22.22 | 22.22 | HTFS6402-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 7/8"-14 | 40.10 | 15.50 | 27.10 | 12.30 | 12.30 | 26.99 | 25.40 | HTFS6402-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 43.30 | 17.00 | 30.10 | 15.50 | 15.50 | 31.75 | 31.75 | HTFS6402-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 46.90 | 17.50 | 31.80 | 20.60 | 21.40 | 38.10 | 38.10 | HTFS6402-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 17.50 | 33.80 | 26.00 | 27.40 | 44.45 | 5.80 | HTFS6402-20-20 | 170-190 | 275 |
Body
Assembly

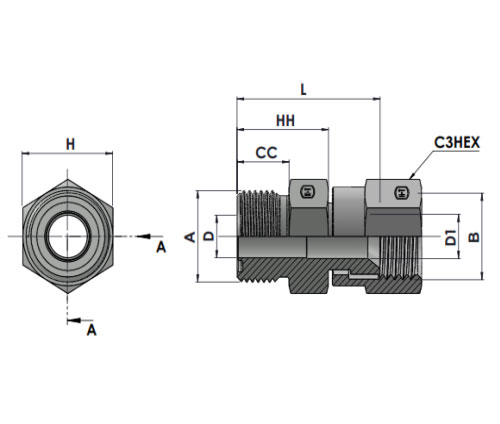

HTFS6402 MFS-FJS Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6402-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6402-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6402-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS6402-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS6402-04-04-S |
