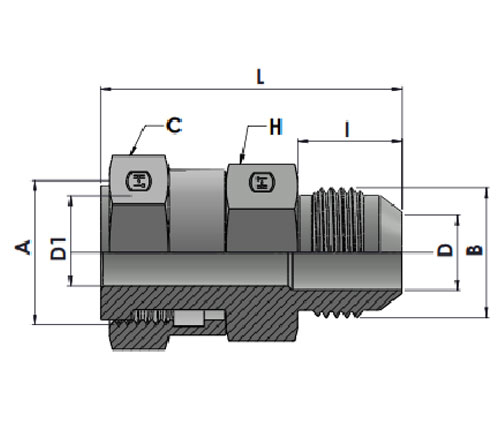

| Tube O.D. | A THREAD |
B THREAD |
L LENGTH |
I LENGTH |
D1 DRILL |
D DRILL |
H Hex |
C Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 40.13 | 14.00 | 4.20 | 4.80 | 15.88 | 17.46 | HTFS6504-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 9/16"-18 | 42.32 | 14.10 | 6.70 | 7.00 | 19.05 | 20.64 | HTFS6504-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 51.99 | 16.70 | 9.10 | 10.30 | 22.22 | 23.81 | HTFS6504-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 7/8"-14 | 57.10 | 19.30 | 11.50 | 13.50 | 26.99 | 28.58 | HTFS6504-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 63.09 | 21.90 | 13.90 | 18.30 | 31.75 | 34.92 | HTFS6504-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 72.16 | 22.60 | 19.90 | 23.80 | 38.10 | 41.28 | HTFS6504-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 73.36 | 24.30 | 26.00 | 31.70 | 47.63 | 47.63 | HTFS6504-20-20 | 170-190 | 275 |
Body
Assembly
HTFS6504 FFSS-MJ Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6504-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6504-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6504-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS6504-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS6504-04-04-S |
