| Tube O.D. | A THREAD |
B THREAD |
M LENGTH |
N LENGTH |
CC LENGTH |
YY LENGTH |
D DRILL |
D2 DRILL |
JJ Hex |
C Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 21.50 | 32.70 | 9.80 | 20.50 | 4.40 | 4.40 | 14.29 | 15.88 | HTFS6801-04-04-NWO | 14-16 | 413 |
| 3/8" | 11/16"-18 | 9/16"-18 | 25.00 | 36.80 | 11.20 | 22.40 | 6.70 | 7.50 | 19.05 | 19.05 | HTFS6801-06-06-NWO | 24-27 | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 28.00 | 40.60 | 12.80 | 26.10 | 9.60 | 9.90 | 19.05 | 23.81 | HTFS6801-08-08-NWO | 43-47 | 413 |
| 5/8" | 1"-14 | 7/8"-14 | 33.30 | 50.00 | 15.50 | 30.20 | 12.30 | 12.00 | 26.99 | 26.99 | HTFS6801-10-10-NWO | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 37.30 | 55.10 | 17.00 | 33.80 | 15.50 | 15.50 | 30.16 | 34.93 | HTFS6801-12-12-NWO | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 41.70 | 59.70 | 17.50 | 34.60 | 20.60 | 21.40 | 36.51 | 41.28 | HTFS6801-16-16-NWO | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 44.70 | 62.20 | 17.50 | 34.60 | 26.00 | 27.40 | 41.28 | 47.63 | HTFS6801-20-20-NWO | 170-190 | 275 |
| 1-1/2" | 2"-12 | 1-7/8"-12 | 48.80 | 65.80 | 17.50 | 34.60 | 32.00 | 33.30 | 47.62 | 53.98 | HTFS6801-24-24-NWO | 200-225 | 275 |
Body
Assembly

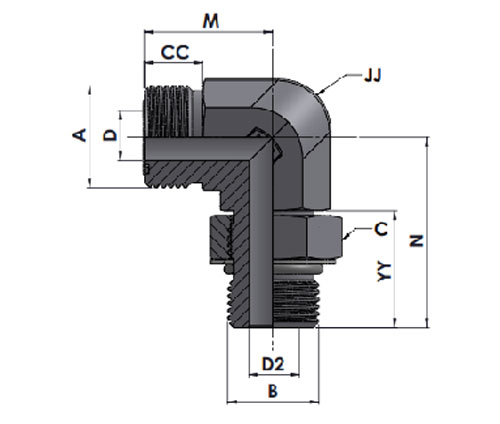

HTFS6801-NWO MFS-MAORB 90° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6801-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6801-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6801-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HTFS6801-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HTFS6801-04-04-NWO-S |
