| Tube O.D. | A THREAD |
C THREAD |
P LENGTH |
Q LENGTH |
D DRILL |
D2 DRILL |
H Hex |
B1 Hex |
Part Number | Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 16.00 | 30.00 | 4.40 | 4.40 | 14.28 | 15.88 | HTFS6802-04-04-NWO | 413 |
| 1/4" | 9/16"-18 | 9/16"-18 | 16.00 | 33.00 | 4.40 | 7.50 | 14.28 | 19.05 | HTFS6802-04-06-NWO | 413 |
| 1/4" | 9/16"-18 | 3/4"-16 | 16.00 | 36.30 | 4.40 | 9.90 | 19.05 | 23.81 | HTFS6802-04-08-NWO | 413 |
| 3/8" | 11/16"-16 | 7/16"-20 | 18.80 | 30.00 | 6.70 | 4.40 | 19.05 | 15.88 | HTFS6802-06-04-NWO | 413 |
| 3/8" | 11/16"-16 | 9/16"-18 | 18.80 | 33.00 | 6.70 | 7.50 | 19.05 | 19.05 | HTFS6802-06-06-NWO | 413 |
| 3/8" | 11/16"-16 | 3/4"-16 | 18.80 | 36.30 | 6.70 | 9.90 | 19.05 | 23.81 | HTFS6802-06-08-NWO | 413 |
| 3/8" | 11/16"-16 | 7/8"-14 | 18.80 | 44.70 | 6.70 | 12.30 | 26.99 | 26.99 | HTFS6802-06-10-NWO | 413 |
| 1/2" | 13/16"-16 | 9/16"-18 | 20.30 | 33.00 | 9.60 | 7.50 | 19.05 | 19.05 | HTFS6802-08-06-NWO | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 20.30 | 36.30 | 9.60 | 9.90 | 19.05 | 23.81 | HTFS6802-08-08-NWO | 413 |
| 1/2" | 13/16"-16 | 7/8"-14 | 20.30 | 44.70 | 9.60 | 12.30 | 26.99 | 26.99 | HTFS6802-08-10-NWO | 413 |
| 1/2" | 13/16"-16 | 1-1/16"-12 | 20.30 | 50.00 | 9.60 | 15.50 | 30.16 | 34.93 | HTFS6802-08-12-NWO | 413 |
| 5/8" | 1"-14 | 3/4"-16 | 23.40 | 36.30 | 12.30 | 9.90 | 26.99 | 23.81 | HTFS6802-10-08-NWO | 413 |
| 5/8" | 1"-14 | 7/8"-14 | 23.40 | 44.70 | 12.30 | 12.30 | 26.99 | 26.99 | HTFS6802-10-10-NWO | 413 |
| 5/8" | 1"-14 | 1-1/16"-12 | 23.40 | 50.00 | 12.30 | 15.50 | 30.16 | 34.93 | HTFS6802-10-12-NWO | 413 |
| 3/4" | 1-3/16"-12 | 3/4"-16 | 25.90 | 36.30 | 15.50 | 9.90 | 30.16 | 23.81 | HTFS6802-12-08-NWO | 413 |
| 3/4" | 1-3/16"-12 | 7/8"-14 | 25.90 | 44.70 | 15.50 | 12.30 | 30.16 | 26.99 | HTFS6802-12-10-NWO | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 25.90 | 50.00 | 15.50 | 15.50 | 30.16 | 34.93 | HTFS6802-12-12-NWO | 413 |
| 3/4" | 1-3/16"-12 | 1-5/16"-12 | 25.90 | 52.30 | 15.50 | 21.40 | 36.51 | 41.28 | HTFS6802-12-16-NWO | 345 |
| 1" | 1-7/16"-12 | 1-1/16"-12 | 30.00 | 50.00 | 20.60 | 15.50 | 36.51 | 34.93 | HTFS6802-16-12-NWO | 345 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 30.00 | 52.30 | 20.60 | 21.40 | 36.51 | 41.28 | HTFS6802-16-16-NWO | 345 |
| 1" | 1-7/16"-12 | 1-5/8"-12 | 30.00 | 53.60 | 20.60 | 27.40 | 41.28 | 47.63 | HTFS6802-16-20-NWO | 275 |
| 1-1/4" | 1-11/16"-12 | 1-5/16"-12 | 32.00 | 52.30 | 26.00 | 21.40 | 41.28 | 41.28 | HTFS6802-20-16-NWO | 275 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 32.00 | 53.60 | 26.00 | 27.40 | 41.28 | 47.63 | HTFS6802-20-20-NWO | 275 |
| 1-1/2" | 2"-12 | 1-7/8"-12 | 36.80 | 53.60 | 32.00 | 33.30 | 47.62 | 53.98 | HTFS6802-24-24-NWO | 275 |
Body
Assembly

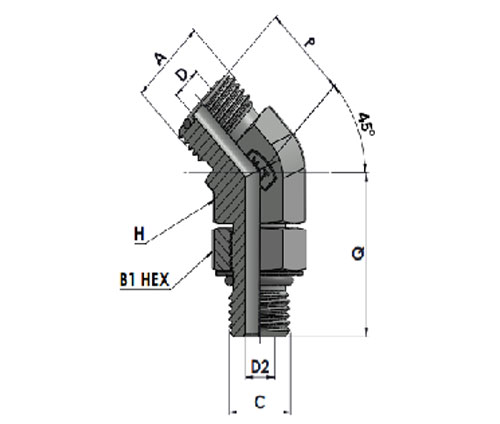

HTFS6802-NWO MFS-MAORB 45° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6802-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6802-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6802-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HTFS6802-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HTFS6802-04-04-NWO-S |
