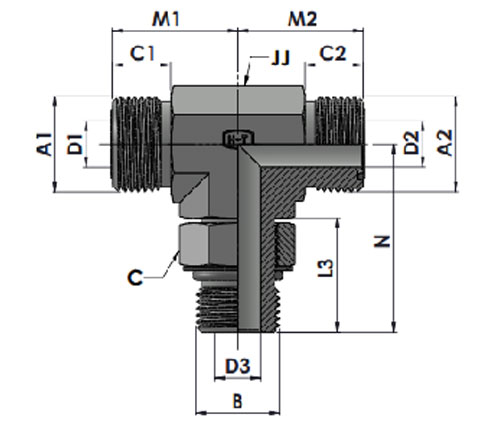

| Tube O.D. | A1 THREAD |
A2 THREAD |
B THREAD |
M1 LENGTH |
M2 LENGTH |
N LENGTH |
C1 LENGTH |
C2 LENGTH |
L3 LENGTH |
D1 DRILL |
D2 DRILL |
D3 DRILL |
JJ Hex |
C Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 9/16"-18 | M12X1.5-6g | 21.50 | 21.50 | 33.00 | 9.80 | 9.80 | 21.00 | 4.40 | 4.40 | 4.00 | 14.00 | 17.00 | HTFS7210-04-04-12-NWO | 35-38.5 | 413 |
| 1/4" | 9/16"-18 | 9/16"-18 | M14X1.5-6g | 23.50 | 23.50 | 35.50 | 9.80 | 9.80 | 21.00 | 4.40 | 4.40 | 6.00 | 17.00 | 19.00 | HTFS7210-04-04-14-NWO | 45-49.50 | 413 |
| 3/8" | 11/16"-18 | 11/16"-18 | M14X1.5-6g | 25.00 | 25.00 | 35.50 | 11.20 | 11.20 | 21.00 | 6.70 | 6.70 | 6.00 | 17.00 | 19.00 | HTFS7210-06-06-14-NWO | 45-49.50 | 413 |
| 3/8" | 11/16"-18 | 11/16"-18 | M16X1.5-6g | 25.00 | 25.00 | 37.50 | 11.20 | 11.20 | 23.00 | 6.70 | 6.70 | 7.00 | 17.00 | 22.00 | HTFS7210-06-06-16-NWO | 55-60.50 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | M14X1.5-6g | 28.00 | 28.00 | 36.00 | 12.80 | 12.80 | 21.00 | 9.60 | 9.60 | 6.00 | 19.00 | 19.00 | HTFS7210-08-08-14-NWO | 45-49.50 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | M18X1.5-6g | 28.00 | 28.00 | 41.00 | 12.80 | 12.80 | 26.00 | 9.60 | 9.60 | 9.00 | 19.00 | 24.00 | HTFS7210-08-08-18-NWO | 70-77 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | M22X1.5-6g | 31.00 | 31.00 | 49.00 | 12.80 | 12.80 | 27.50 | 9.60 | 9.60 | 12.00 | 24.00 | 27.00 | HTFS7210-08-08-22-NWO | 100-110 | 413 |
| 5/8" | 1"-14UNS | 1"-14UNS | M22X1.5-6g | 33.50 | 33.50 | 49.00 | 17.50 | 17.50 | 27.50 | 12.30 | 12.30 | 12.00 | 24.00 | 27.00 | HTFS7210-10-10-22-NWO | 100-110 | 413 |
| 3/4" | 1-3/16"-12 | 1-3/16"-12 | M27X2.0-6g | 37.50 | 37.50 | 55.50 | 17.50 | 17.50 | 33.50 | 15.50 | 15.50 | 15.00 | 27.00 | 32.00 | HTFS7210-12-12-27-NWO | 170-187 | 413 |
| 1" | 1-7/16"-12 | 1-7/16"-12 | M33X2.0-6g | 41.50 | 41.50 | 59.50 | 17.50 | 17.50 | 33.50 | 20.60 | 20.60 | 20.00 | 36.00 | 41.00 | HTFS7210-16-16-33-NWO | 310-341 | 345 |
| 1-1/4" | 1-11/16"-12 | 1-11/16"-12 | M42X2.0-6g | 44.50 | 44.50 | 63.00 | 17.50 | 17.50 | 34.50 | 26.00 | 26.00 | 26.00 | 41.00 | 50.00 | HTFS7210-20-20-42-NWO | 330-363 | 275 |
| 1-1/2" | 2"-12 | 2"-12 | M48X2.0-6g | 49.00 | 49.00 | 71.50 | 17.50 | 17.50 | 38.00 | 32.00 | 32.00 | 32.00 | 50.00 | 55.00 | HTFS7210-24-24-48-NWO | 420-462 | 207 |
Body
Assembly
HTFS7210-NWO MFS-MFS-MMAORB Tee
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS7210-04-04-12-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HTFS7210-04-04-12-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS7210-04-04-12-NWO-SST |
| Stainless Steel-SS316 | SS316 | HTFS7210-04-04-12-NWO-SS |
| Stainless Steel-SS304 | SS304 | HTFS7210-04-04-12-NWO-S |
