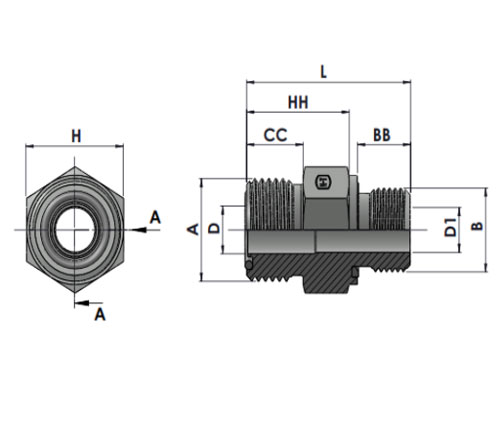

| Tube O.D. | A THREAD |
B THREAD |
L LENGTH |
CC LENGTH |
HH LENGTH |
BB LENGTH |
D DRILL |
D1 DRILL |
H Hex |
Part Number | Weight | Working pressure in Bar |
| 1/4" | 9/16"-18 | M10X1.0 | 27.30 | 9.80 | 17.80 | 8.00 | 4.40 | 4.00 | 17.00 | HTFS7701-04-10 | 0.032 | 413 |
| 1/4" | 9/16"-18 | M12X1.5 | 31.80 | 9.80 | 17.80 | 12.00 | 4.40 | 6.00 | 19.00 | HTFS7701-04-12 | 0.046 | 413 |
| 1/4" | 9/16"-18 | M14X1.5 | 31.80 | 9.80 | 17.80 | 12.00 | 4.40 | 7.00 | 19.00 | HTFS7701-04-14 | 0.046 | 413 |
| 3/8" | 11/16"-16 | M18X1.5 | 34.40 | 11.20 | 19.90 | 12.00 | 6.70 | 11.00 | 27.00 | HTFS7701-06-18 | 0.102 | 413 |
| 5/8" | 1"-14 | M18X1.5 | 41.60 | 15.50 | 27.10 | 12.00 | 12.30 | 11.00 | 27.00 | HTFS7701-10-18 | 0.123 | 413 |
| 5/8" | 1"-14 | M22X1.5 | 44.10 | 15.50 | 27.10 | 14.00 | 12.30 | 14.00 | 27.00 | HTFS7701-10-22 | 0.130 | 1413 |
| 1" | 1-7/16"-12 | M33X2.0 | 52.80 | 17.50 | 31.80 | 18.00 | 20.60 | 23.00 | 41.00 | HTFS7701-16-33 | 0.360 | 413 |
Body
Assembly
HTFS7701 MFS-MMED Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS7701-04-10 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS7701-04-10-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS7701-04-10-SST |
| Stainless Steel-SS316 | SS316 | HTFS7701-04-10-SS |
| Stainless Steel-SS304 | SS304 | HTFS7701-04-10-S |
