| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
ØD1 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
| 6 | M12X1.5-6g | M14X1.5-6H | 17.00 | 17.00 | 39.00 | 4.00 | 6.00 | XSP 6-SMED | SP 6-SMED | 14-16 | 630 |
| 8 | M14X1.5-6g | M16X1.5-6H | 19.00 | 19.00 | 41.50 | 5.00 | 8.00 | XSP 8-SMED | SP 8-SMED | 25-28 | 630 |
| 10 | M16X1.5-6g | M18X1.5-6H | 22.00 | 22.00 | 44.00 | 7.00 | 10.00 | XSP 10-SMED | SP 10-SMED | 27-30 | 630 |
| 12 | M18X1.5-6g | M20X1.5-6H | 24.00 | 24.00 | 46.00 | 8.00 | 12.00 | XSP 12-SMED | SP 12-SMED | 43-54 | 630 |
| 14 | M20X1.5-6g | M22X1.5-6H | 27.00 | 27.00 | 50.00 | 10.00 | 14.00 | XSP 14-SMED | SP 14-SMED | 50-62 | 630 |
| 16 | M22X1.5-6g | M24X1.5-6H | 27.00 | 30.00 | 51.00 | 12.00 | 16.00 | XSP 16-SMED | SP 16-SMED | 60-75 | 400 |
| 20 | M27X2.0-6g | M30X2.0-6H | 32.00 | 36.00 | 59.00 | 16.00 | 20.00 | XSP 20-SMED | SP 20-SMED | 90-110 | 400 |
| 25 | M33X2.0-6g | M36X2.0-6H | 41.00 | 46.00 | 66.00 | 20.00 | 25.00 | XSP 25-SMED | SP 25-SMED | 125-145 | 400 |
| 30 | M42X2.0-6g | M42X2.0-6H | 50.00 | 50.00 | 71.00 | 25.00 | 30.00 | XSP 30-SMED | SP 30-SMED | 170-190 | 250 |
| 38 | M48X2.0-6g | M52X2.0-6H | 55.00 | 60.00 | 82.00 | 32.00 | 38.00 | XSP 38-SMED | SP 38-SMED | 200-245 | 250 |

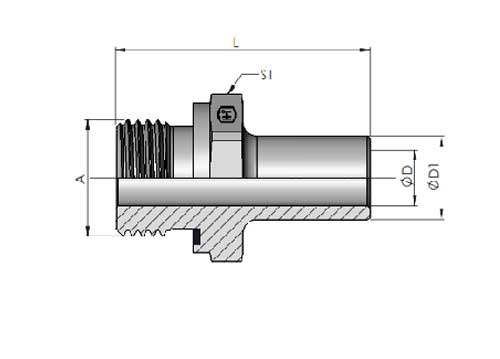

Body Part
Assembly Part
EVGE-M-ED-S Stand Pipe Adaptor With Nut And Ferrules
We provide EVGE M ED S Stand Pipe Adaptors With Nut And Ferrule, Stand Pipe Adaptors, Straight Series, DIN Metric Fittings. Our setup is situated in Thane, Pune, Nashik (Maharashtra), Pithampur (Madhya Pradesh), India and Virginia (USA - United States Of America); and we primarily serve customers from countries such as India, USA (United States of America), Germany, and Italy.
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
