| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
ØD1 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
| 6 | M12X1.5-6g | M14X1.5-6H | 17.00 | 17.00 | 39.00 | 4.00 | 6.00 | XSP06SM | EVGE06SM | 14-16 | 630 |
| 8 | M14X1.5-6g | M16X1.5-6H | 19.00 | 19.00 | 41.50 | 5.00 | 8.00 | XSP08SM | EVGE08SM | 25-28 | 630 |
| 10 | M16X1.5-6g | M18X1.5-6H | 22.00 | 22.00 | 44.00 | 7.00 | 10.00 | XSP10SM | EVGE10SM | 27-30 | 630 |
| 12 | M18X1.5-6g | M20X1.5-6H | 24.00 | 24.00 | 46.00 | 8.00 | 12.00 | XSP12SM | EVGE12SM | 43-54 | 630 |
| 14 | M20X1.5-6g | M22X1.5-6H | 27.00 | 27.00 | 50.00 | 10.00 | 14.00 | XSP14SM | EVGE14SM | 50-62 | 630 |
| 16 | M22X1.5-6g | M24X1.5-6H | 27.00 | 30.00 | 51.00 | 12.00 | 16.00 | XSP16SM | EVGE16SM | 60-75 | 400 |
| 20 | M27X2.0-6g | M30X2.0-6H | 32.00 | 36.00 | 59.00 | 16.00 | 20.00 | XSP20SM | EVGE20SM | 90-110 | 400 |
| 25 | M33X2.0-6g | M36X2.0-6H | 41.00 | 46.00 | 66.00 | 20.00 | 25.00 | XSP25SM | EVGE25SM | 125-145 | 400 |
| 30 | M42X2.0-6g | M42X2.0-6H | 50.00 | 50.00 | 71.00 | 25.00 | 30.00 | XSP30SM | EVGE30SM | 170-190 | 250 |
| 38 | M48X2.0-6g | M52X2.0-6H | 55.00 | 60.00 | 82.00 | 32.00 | 38.00 | XSP38SM | EVGE38SM | 200-245 | 250 |

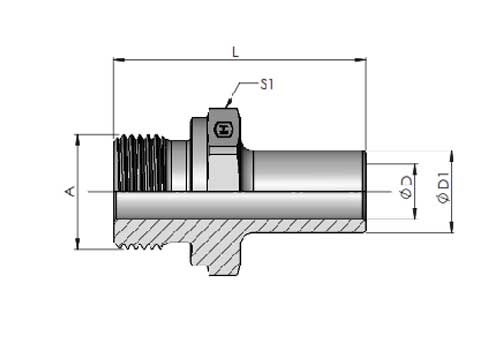

Body Part
Assembly Part

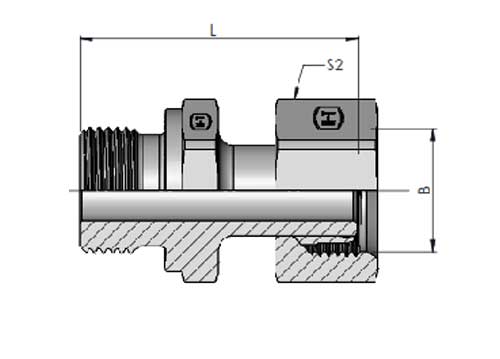

EVGE-M-S Stand Pipe Adaptor With Nut And Ferrules
We provide EVGE MS Stand Pipe Adaptors With Nut And Ferrule, Stand Pipe Adaptors, Straight Series, DIN Metric Fittings. Our setup is situated in Thane, Pune, Nashik (Maharashtra), Pithampur (Madhya Pradesh), India and Virginia (USA - United States Of America); and we primarily serve customers from countries such as India, USA (United States of America), Germany, and Italy.
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XSP06LM | |
| Steel ,Zinc nickel plated | ZiNi | XSP06LM-ZiNi |
| Stainless Steel-SS316 Ti | SST | XSP06LM-SST |
| Stainless Steel-SS316 | SS316 | XSP06LM-SS |
| Stainless Steel-SS304 | SS304 | XSP06LM-S |
