| Tube O.D. | L LENGTH |
ØD1 | ØD2 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 6 | 18.50 | 6.00 | 9.90 | XVKA06S | VKA06S | 14-16 | 630 |
| 8 | 18.50 | 8.00 | 11.90 | XVKA08S | VKA08S | 25-28 | 630 |
| 10 | 20.00 | 10.00 | 13.00 | XVKA10S | VKA10S | 27-30 | 630 |
| 12 | 20.50 | 12.00 | 15.00 | XVKA12S | VKA12S | 43-54 | 630 |
| 14 | 22.50 | 14.00 | 17.00 | XVKA14S | VKA14S | 50-62 | 630 |
| 16 | 23.50 | 16.00 | 19.00 | XVKA16S | VKA16S | 60-75 | 400 |
| 20 | 28.50 | 20.00 | 24.00 | XVKA20S | VKA20S | 90-110 | 400 |
| 25 | 29.00 | 25.00 | 29.50 | XVKA25S | VKA25S | 125-145 | 400 |
| 30 | 30.50 | 30.00 | 34.50 | XVKA30S | VKA30S | 170-190 | 250 |
| 38 | 33.00 | 38.00 | 43.00 | XVKA38S | VKA38S | 200-245 | 250 |

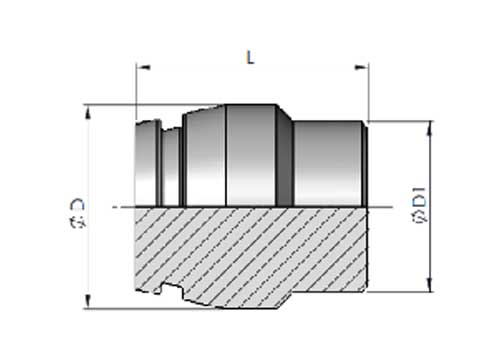

Body Part

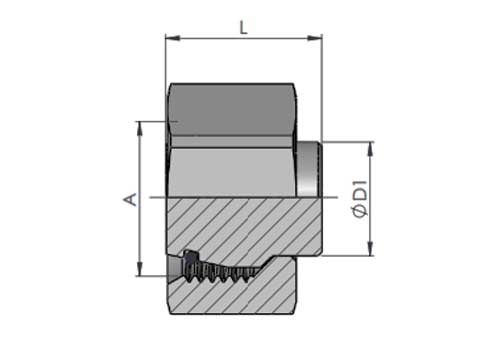

Assembly Part
VKA-S CAP
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XVKA06L | |
| Steel ,Zinc nickel plated | ZiNi | XVKA06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XVKA06L-SST |
| Stainless Steel-SS316 | SS316 | XVKA06L-SS |
| Stainless Steel-SS304 | SS304 | XVKA06L-S |
